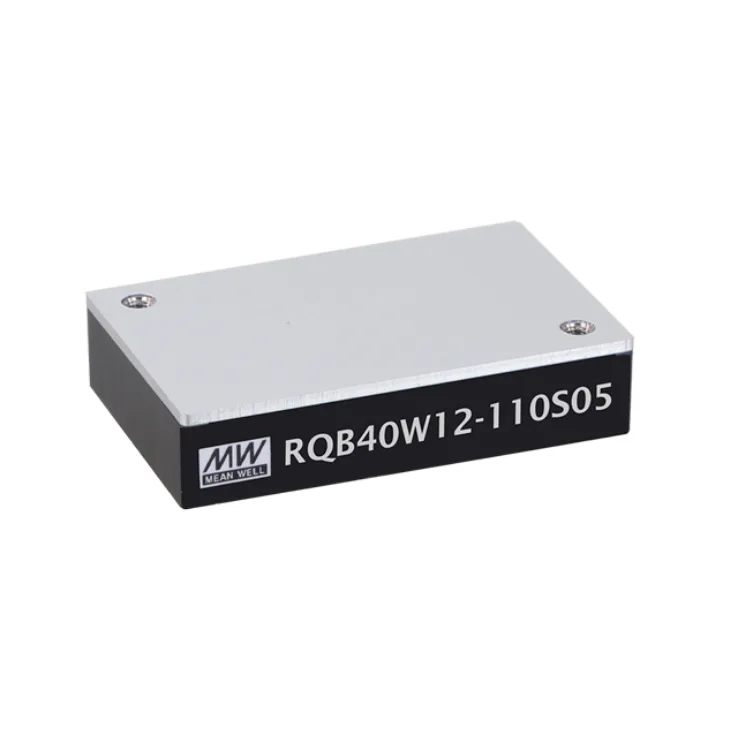

RQB40W12 Series DC-DC Power Supplies 40W

Download Datasheet
Models:
  • RQB40W12-110S05
  • RQB40W12-110512
  • RQB40W12-110S24
  • RQB40W12-110S48
  • RQB40W12-110S54
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

RQB40W12 Series Features:

RQB40W12 series is a 40W module type DC-DC reliable railway with quarter brick package.

Features:

  • Quarter brick (2.28"x1.45"x0.5") with industrial standard pin-out
  • Compliance with railway standard EN50155
  • 12:1 (14~160Vdc) ultra-wide input range
  • Wide operating temperature range -40~90℃
  • No minimum load required
  • Full encapsulated
  • Protections: Short circuit (continuous)/Overload/Over temperature/Over voltage/Input under voltage
  • 3KVDC or 2KVAC I/O isolation
  • Remote ON/OFF control and remote sense
  • Trimming output (±10%)
  • 3 years warranty
Wattage 40 40 40 40 40
Input Voltage 14~160V 14~160V 14~160V 14~160V 14~160V
Output Current 8 3.333 1.667 0.833 0.741
Output Voltage 5 12 24 48 54
Dimensions 57.9*36.8*12.7mm 57.9*36.8*12.7mm 57.9*36.8*12.7mm 57.9*36.8*12.7mm 57.9*36.8*12.7mm
Working Temperature -40 ~ +90℃(Refer to "Derating Curve")
Safety Standards CB IEC62368-1, UL62368-1, EAC TP TC 020/2011 approved
EMC Standards BS EN/EN55011
