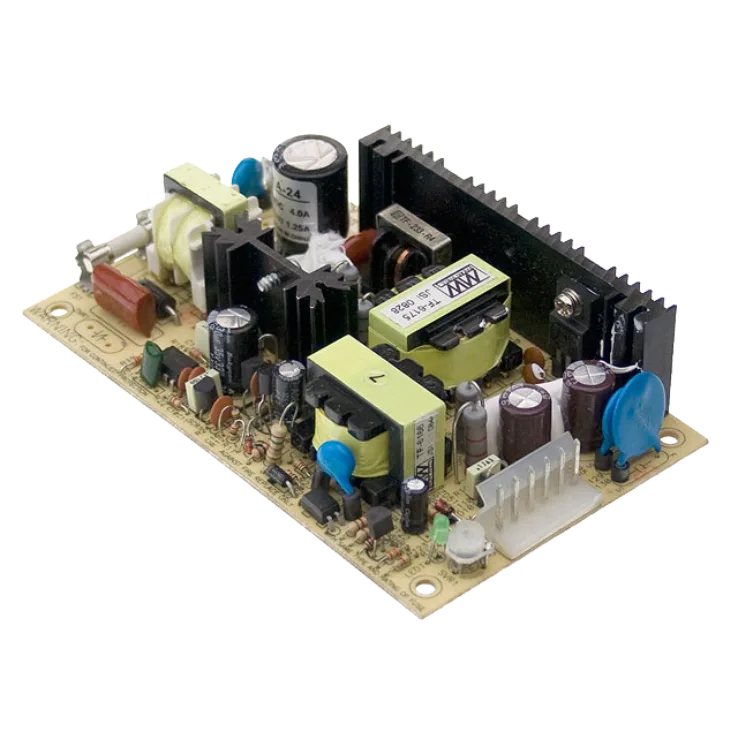

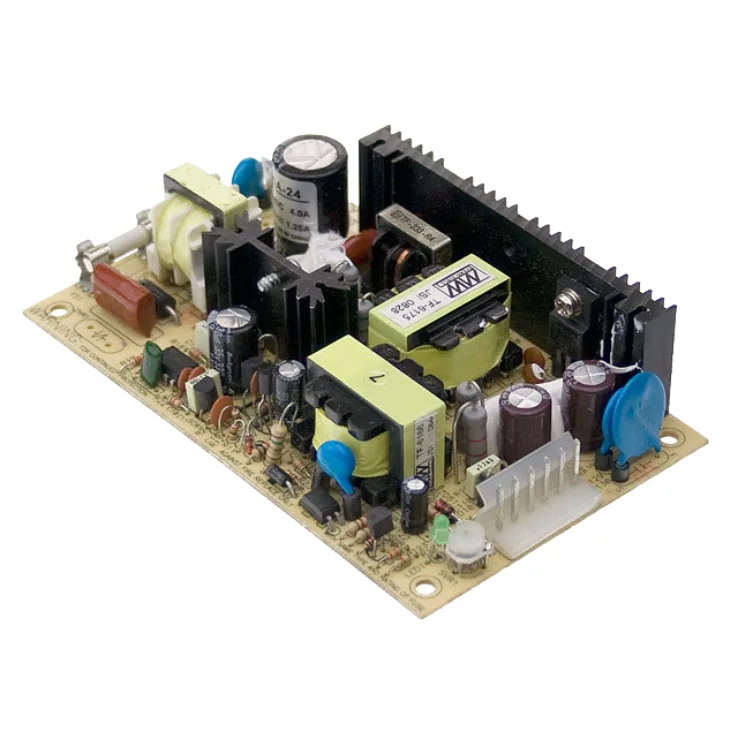

PSD-45 Series DC-DC Power Supplies 45W

Download Datasheet
Models:
  • PSD-45A-05
  • PSD-45A-12
  • PSD-45A-24
  • PSD-45B-05
  • PSD-45B-12
  • PSD-45B-24
  • PSD-45C-05
  • PSD-45C-12
  • PSD-45C-24
Manufacturer: Mean Well
Type: DC-DC Power Supplies

PSD-45 Series Features:

2:1 wide input range

Protections: Short Circuit / Overload / Over voltage / Reverse Polarity

Other Features:

  • Cooling by free air convection
  • Built in EMI filter, low ripple noise
  • 100% full load burn in test
  • Fixed switching frequency at 96kHz
  • Low cost
  • 2 years warranty
Wattage 45 45 45 45 45 45 45 45 45
Input Voltage 9.2~18 9.2~18 9.2~18 18~36 18~36 18~36 37~72 37~72 37~72
Output Current 0~6.0 0~2.5 0~1.25 0~9.0 0~3.75 0~1.875 0~9.0 0~3.75 0~1.875
Output Voltage 5 12 24 5 12 24 5 5 5
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 5V: 4.5~5.5V, 12V: 10.8~13.2V, 24V: 21.6~26.4V 5V: 4.5~5.5V, 12V: 10.8~13.2V, 24V: 21.6~26.4V 5V: 4.5~5.5V, 12V: 10.8~13.2V, 24V: 21.6~26.4V 5V: 4.5~5.5V, 12V: 10.8~13.2V, 24V: 21.6~26.4V 5V: 4.5~5.5V, 12V: 10.8~13.2V, 24V: 21.6~26.4V 5V: 4.5~5.5V, 12V: 10.8~13.2V, 24V: 21.6~26.4V 5V: 4.5~5.5V, 12V: 10.8~13.2V, 24V: 21.6~26.4V 5V: 4.5~5.5V, 12V: 10.8~13.2V, 24V: 21.6~26.4V 5V: 4.5~5.5V, 12V: 10.8~13.2V, 24V: 21.6~26.4V
Dimensions 127 x 76 x 30 127 x 76 x 30 127 x 76 x 30 127 x 76 x 30 127 x 76 x 30 127 x 76 x 30 127 x 76 x 30 127 x 76 x 30 127 x 76 x 30
Working Temperature -10~+60°C (refer to output derating curve)
Safety Standards EN60950-1 CB approved by TUV
EMC Standards EN55022 class B, EN61000-4-2,3,4,6,8,EN55024 EN55022 class B, EN61000-4-2,3,4,5,6,8, EN55024 EN55022 class B, EN61000-4-2,3,4,6,8,EN55024 EN55022 class B, EN61000-4-2,3,4,5,6,8, EN55024
