MEAN WELL

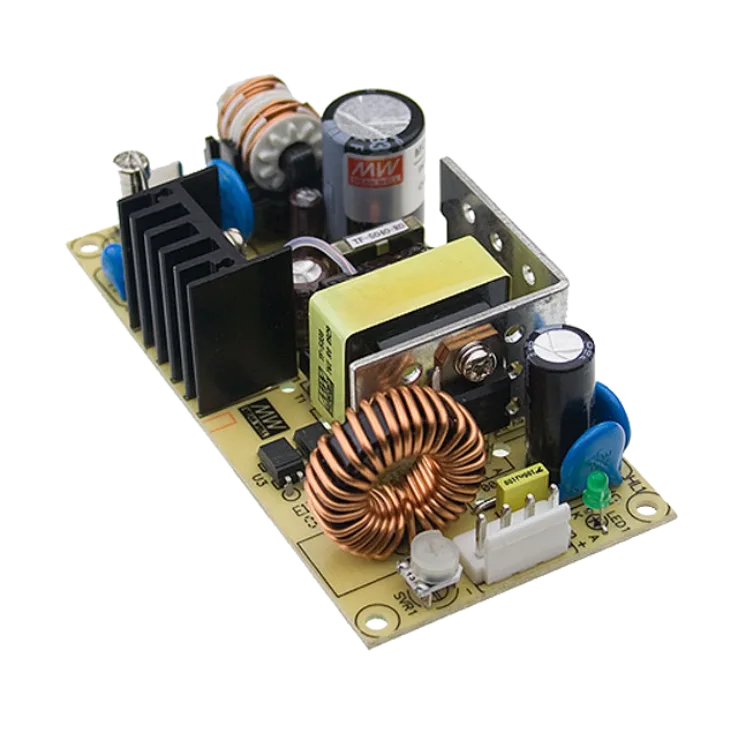

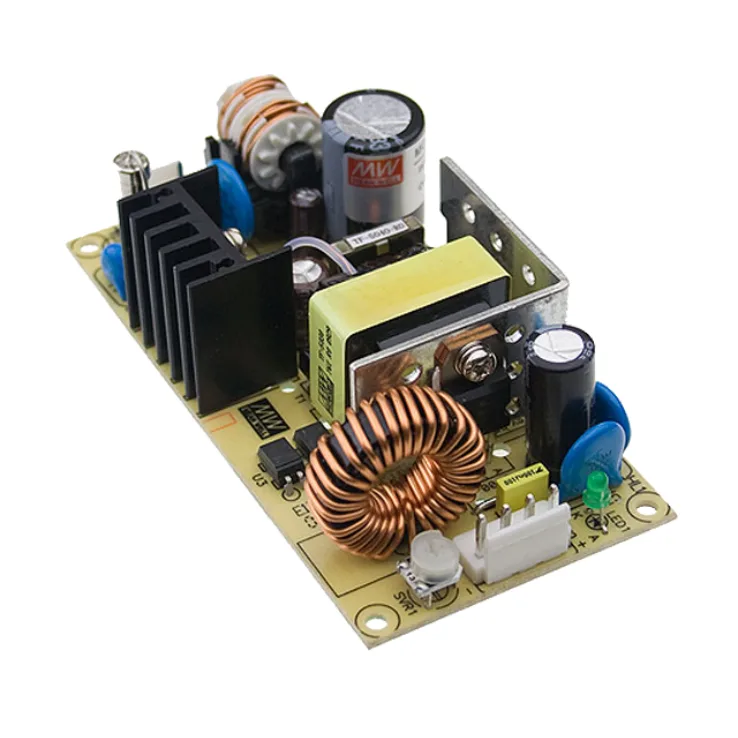

PSD-30 Series DC-DC Power Supplies 30W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
PSD-30 Series Features:
2:1 wide input range
Protections: Short Circuit / Overload / Over voltage / Reverse Polarity
Other Features:
- 1500VAC I/O isolation
- Cooling by free air convection
- Built in EMI filter, low ripple noise
- 100% full load burn in test
- Low cost, high reliability
- 2 years warranty
| Wattage | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9~18 | 9~18 | 9~18 | 18~36 | 18~36 | 18~36 | 36~72 | 36~72 | 36~72 | ||||||||
| Output Current | 0~5.0 | 0~2.5 | 0~1.25 | 0~5.0 | 0~2.5 | 0~1.25 | 0~5.0 | 0~2.5 | 0~1.25 | ||||||||
| Output Voltage | 5 | 12 | 24 | 5 | 12 | 24 | 5 | 12 | 24 | ||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC output adjustment | 5V: 4.5~5.5V, 12V: 11~13.5V, 24V: 22~26V | 5V: 4.5~5.5V, 12V: 11~13.5V, 24V: 22~26V | 5V: 4.5~5.5V, 12V: 11~13.5V, 24V: 22~26V | 5V: 4.5~5.5V, 12V: 11~13.5V, 24V: 22~26V | 5V: 4.5~5.5V, 12V: 11~13.5V, 24V: 22~26V | 5V: 4.5~5.5V, 12V: 11~13.5V, 24V: 22~26V | 5V: 4.5~5.5V, 12V: 11~13.5V, 24V: 22~26V | 5V: 4.5~5.5V, 12V: 11~13.5V, 24V: 22~26V | 5V: 4.5~5.5V, 12V: 11~13.5V, 24V: 22~26V | ||||||||
| Dimensions | 101.6 x 50.8 x 30 | 101.6 x 50.8 x 30 | 101.6 x 50.8 x 30 | 101.6 x 50.8 x 30 | 101.6 x 50.8 x 30 | 101.6 x 50.8 x 30 | 101.6 x 50.8 x 30 | 101.6 x 50.8 x 30 | 101.6 x 50.8 x 30 | ||||||||
| Working Temperature | -20~+60°C | ||||||||||||||||
| Safety Standards | N/A | ||||||||||||||||
| EMC Standards | EN55022 class B, EN61000-4-2,3,4,6,8,EN55024 | EN55022 class B, EN61000-4-2,3,4,5,6,8, EN55024 | EN55022 class B, EN61000-4-2,3,4,6,8,EN55024 | EN55022 class B, EN61000-4-2,3,4,5,6,8, EN55024 | |||||||||||||
