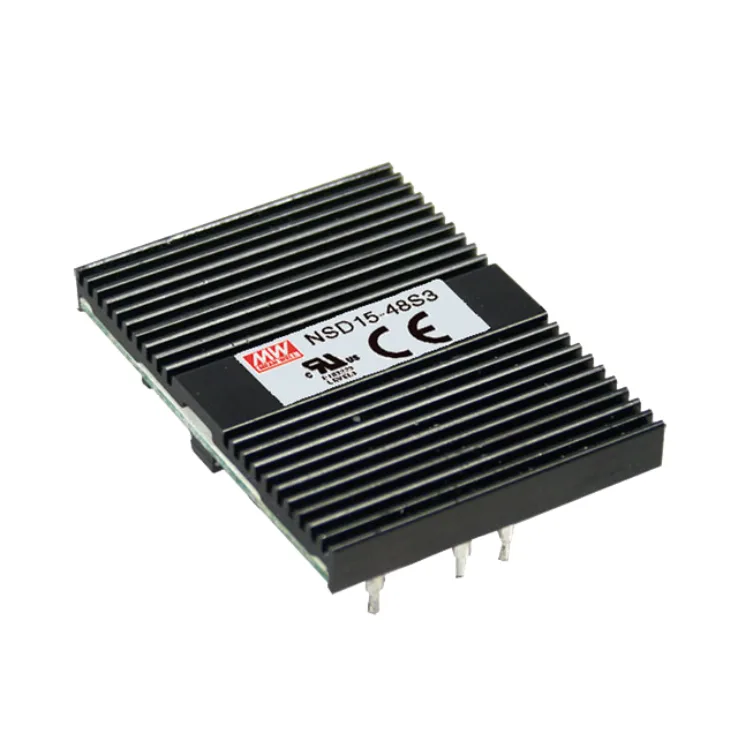

Mean Well NSD15 Series DC-DC Power Supplies 15W

Download Datasheet
Models:
  • NSD15-12D12
  • NSD15-12D15
  • NSD15-12D5
  • NSD15-12S12
  • NSD15-12S15
  • NSD15-12S3
  • NSD15-12S5
  • NSD15-48D12
  • NSD15-48D15
  • NSD15-48D5
  • NSD15-48S12
  • NSD15-48S15
  • NSD15-48S3
  • NSD15-48S5
Manufacturer: Mean Well
Type: DC-DC Power Supplies

NSD15 Series Features:

4:1 wide input range

Protections: Short Circuit / Overload / Over voltage

Other Features:

  • 1500VDC I/O isolation
  • Built in EMI filter
  • Output voltage trimming function
  • Built in ON/OFF control
  • Cooling by free air convection
  • 100%full load burn in test
  • Low cost, high reliability
  • 2 years warranty
Wattage 15 15 15 15 15 15 15 15 15 15 15 15 15 15
Input Voltage 9.4~36 9.4~36 9.4~36 9.4~36 9.4~36 9.4~36 9.4~36 18~72 18~72 18~72 18~72 18~72 18~72 18~72
Output Current +30~620 +20~500 +70~1500 1250 1000 3750 3000 +30~620 +20~500 +70~1500 1250 1000 3750 3000
Output Voltage 12, -12 15, -15 5, -5 12 15 3.3 5 12, -12 15, -15 5, -5 15 15 3.3 5
Output Voltage Options Dual Dual Dual Single Single Single Single Dual Dual Dual Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A 1250 N/A N/A N/A N/A N/A N/A N/A
Dimensions 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82 50.8 x 39.1 x 9.82
Working Temperature -10B0C~ +45B0C (Refer to output load derating curve) -20~+50B0C -10~+50B0C -20~+60B0C
Safety Standards UL60950-1 approved
EMC Standards EN55022 class B, EN61000-4-2,3,4,5,6,8
