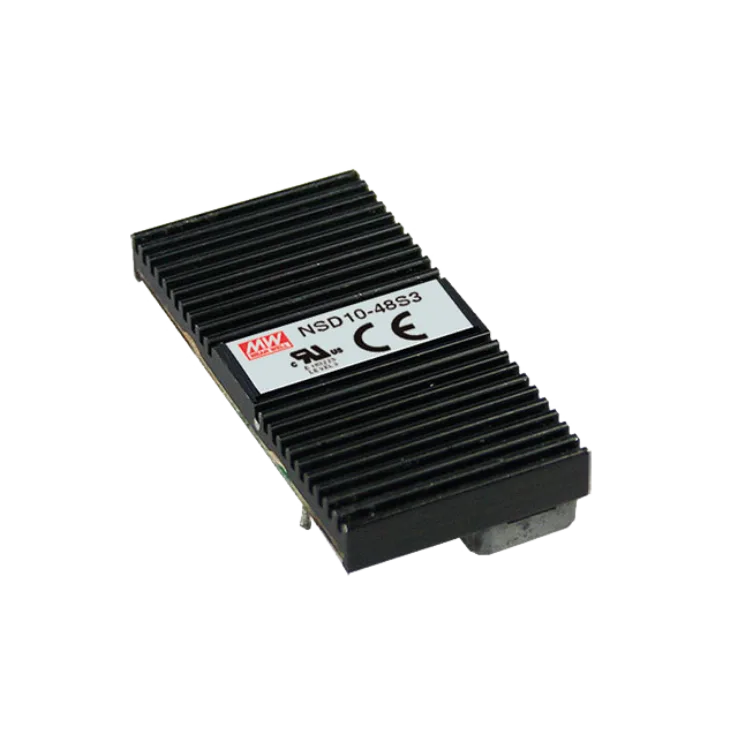

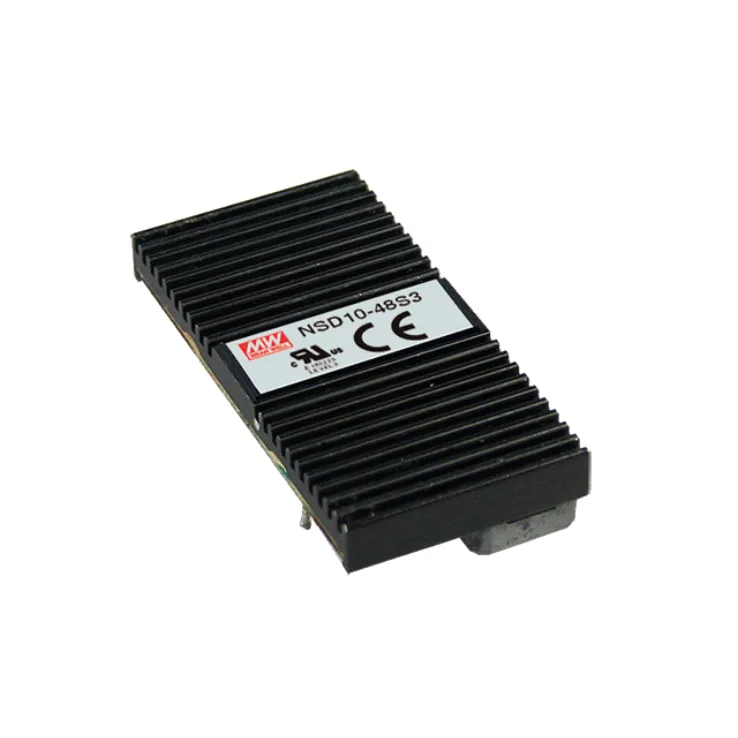

Mean Well NSD10 Series DC-DC Power Supplies 10W

Download Datasheet
Models:
  • NSD10-12D12
  • NSD10-12D15
  • NSD10-12D5
  • NSD10-12S12
  • NSD10-12S15
  • NSD10-12S3
  • NSD10-12S5
  • NSD10-12S9
  • NSD10-48D12
  • NSD10-48D15
  • NSD10-48D5
  • NSD10-48S12
  • NSD10-48S15
  • NSD10-48S3
  • NSD10-48S5
  • NSD10-48S9
Manufacturer: Mean Well
Type: DC-DC Power Supplies

NSD10 Series Features:

4:1 wide input range

Protections: Short Circuit / Overload / Over voltage

Other Features:

  • 1000VDC I/O isolation
  • Built in EMI filter
  • Built in ON/OFF control
  • Trimming output (+10%)
  • Cooling by free air convection
  • 100%full load burn in test
  • Low cost, high reliability
  • 2 years warranty

Wattage 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
Input Voltage 9.8~36 9.8~36 9.8~36 9.8~36 9.8~36 9.8~36 9.8~36 9.8~36 22~72 22~72 22~72 22~72 22~72 22~72 22~72 22~72
Output Current +20~420 +16~330 +50~1000 830 670 2500 2000 1100 +20~420 +16~330 +50~1000 830 670 2500 2000 1100
Output Voltage 12, -12 15, -15 5, -5 12 15 3.3 5 9 12, -12 15, -15 5, -5 12 15 3.3 5 9
Output Voltage Options Dual Dual Dual Single Single Single Single Single Dual Dual Dual Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Dimensions 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10 50.8 x 25.4 x 10
Working Temperature -20~+40B0C 0~+40B0C -10B0C~ +45B0C (Refer to output load derating curve) -20~+60B0C
Safety Standards UL60950-1 approved
EMC Standards EN55022 class B, EN61000-4-2,3,4,5,6,8 EN55022 class B, EN61000-4-2,3,4,5,6,8, EN55022 class B, EN61000-4-2,3,4,5,6,8
