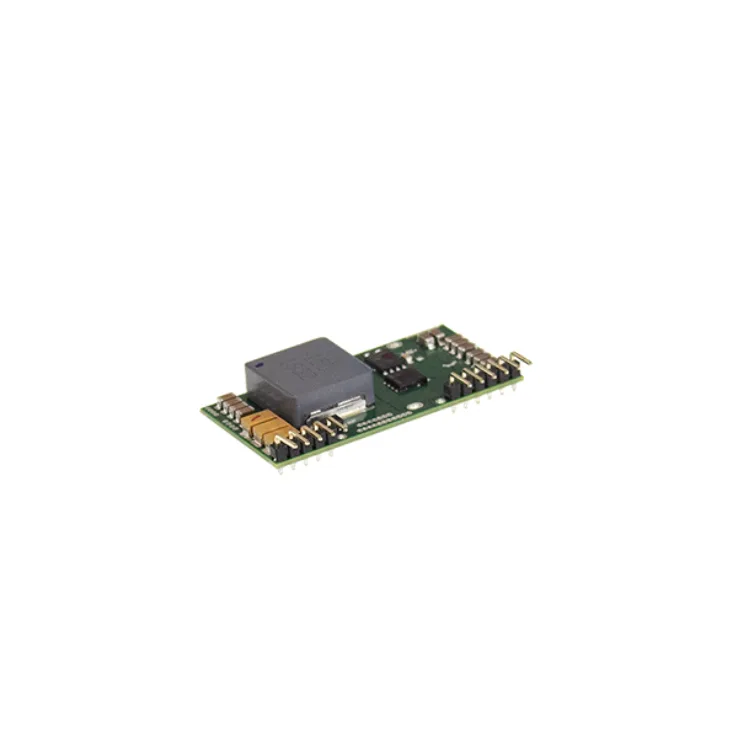

NID65 Series DC-DC Power Supplies 32.5–64.8W

Download Datasheet
Models:
  • NID65-5
  • NID65-12
  • NID65-15
  • NID65-24
Manufacturer: Mean Well
Type: DC-DC Power Supplies

NID65 Series Features:

Economical open frame design

Wide input range

High efficiency up to 97%

Remote ON / OFF control

Compact size 2.0"x1.024"x 0.433"(SIP package)

Protections: Short circuit/ Overload/ Over voltage

-30~+85°C wide working temperature

Cooling by free air convection

Comply to EN55032 ClassA without additional components

Trimming output (optional)

3 years warranty

Wattage 32.5 58.8 64.5 64.8
Input Voltage 10.5-53 VDC 20-53 VDC 20-53 VDC 30-53 VDC
Output Current 0-6.5A 0-4.9A 0-4.3A 0-2.7A
Output Voltage 5 12 15 24
Output Voltage Options Single Single Single Single
DC output adjustment 5V 12V 15V 24V
Dimensions 50.8 x 26 x 11 50.8 x 26 x 11 50.8 x 26 x 11 50.8 x 26 x 11
Working Temperature -30 -+85°C (Refer to "Derating Curve")
Safety Standards EN62368-1 (LVD)
EMC Standards Compliance to EN55032, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
