Mean Well Mean Well logo

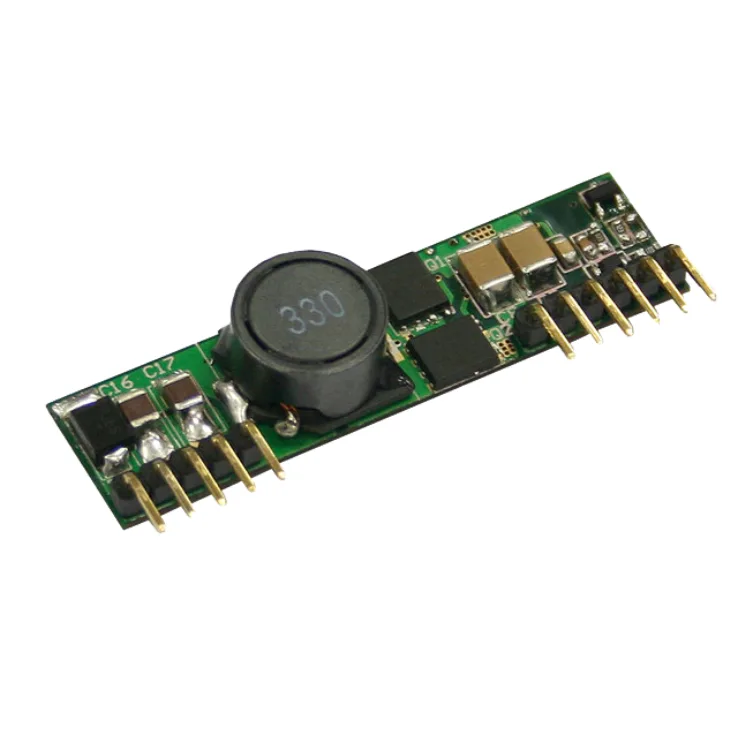

NID30 Series DC-DC Power Supplies 30W

Download Datasheet
Models:
  • NID30S24-05
  • NID30S24-12
  • NID30S24-15
  • NID30S48-24
Manufacturer: Mean Well
Type: DC-DC Power Supplies

NID30 Series Features:

3:1 wide input range for 5~15 output

Protections: Short Circuit / Overload / Over voltage

Other Features:

  • Non- isolated, fix frequency at 250kHz
  • +2% output voltage accuracy
  • High efficiency upto 96%
  • Built in remote ON/OFF control
  • Compact size
  • Cooling by free air convection
  • Economical open frame design
  • 2 years warranty
Wattage 30 30 30 30
Input Voltage 20~53 20~53 20~53 30~53
Output Current 0~2.50 0~2.50 0~2.00 0~1.25
Output Voltage 5 12 15 24
Output Voltage Options Single Single Single Single
DC output adjustment N/A N/A N/A N/A
Dimensions 50.8 x 13 x 10.7 50.8 x 13 x 10.7 50.8 x 13 x 10.7 50.8 x 13 x 10.7
Working Temperature -25~+70°C
Safety Standards N/A
EMC Standards N/A
