| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |

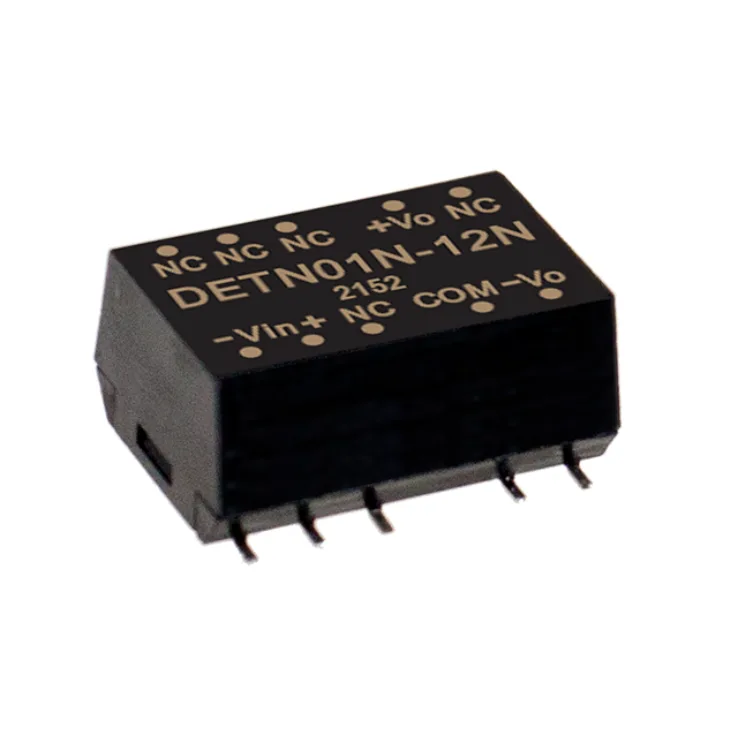

DETN01-N series is 1W isolated and unregulated module type DC-DC converter with SMD package.
Features:
| Wattage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Voltage | 4.5~5.5 | 4.5~5.5 | 4.5~5.5 | 10.8~13.2 | 10.8~13.2 | 10.8~13.2 | 21.6~26.4 | 21.6~26.4 | 21.6~26.4 |
| Output Current | ±10~100mA | ±4.2~42mA | ±3.4~34mA | ±10~100mA | ±4.2~42mA | ±3.4~34mA | ±10~100mA | ±4.2~42mA | ±3.4~34mA |
| Output Voltage | ±5 | ±12 | ±15 | ±5 | ±12 | ±15 | ±5 | ±12 | ±15 |
| Dimensions | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm |
| Working Temperature | -40~100°C | ||||||||
| Safety Standards | EAC TP TC 004 approved | ||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | ||||||||
