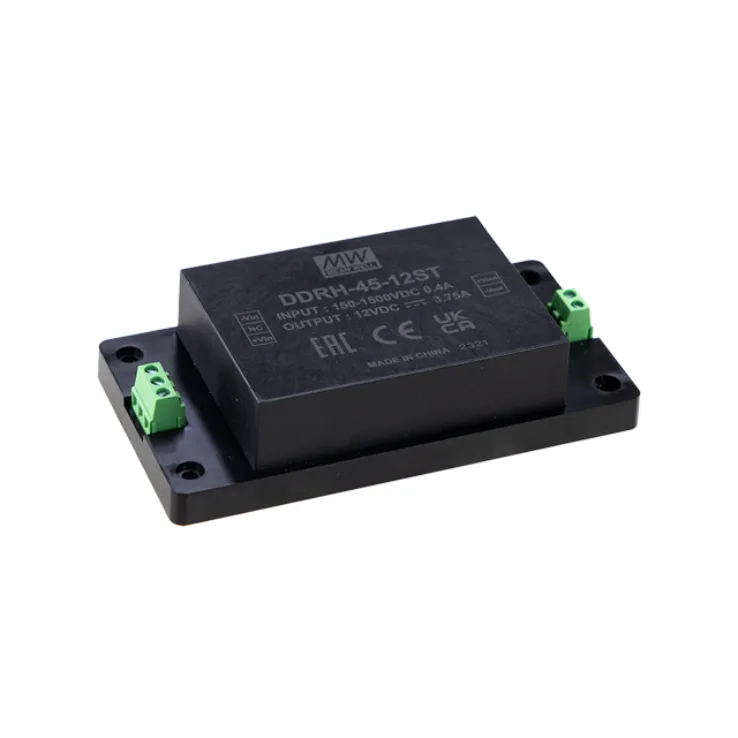

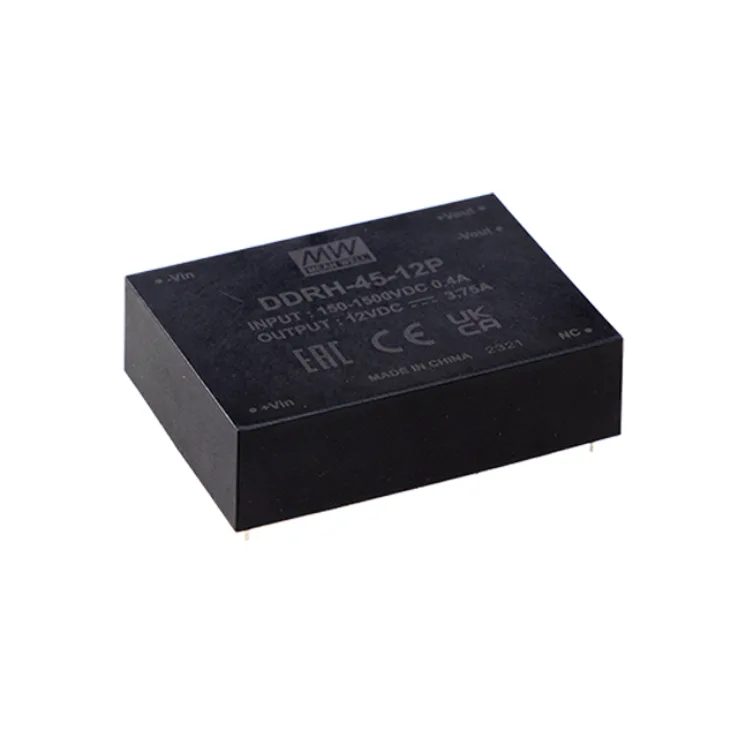

DDRH-45 Series DC-DC Power Supplies 45W

Models:	DDRH-45-12 P/ST or DR DDRH-45-15 P/ST or DR DDRH-45-24 P/ST or DR DDRH-45-48 P/ST or DR
Manufacturer:	MEAN WELL
Type:	DC-DC Power Supplies

DDRH-45 Series Features:

DDRH-45 series is a 150~1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load.

Features:

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation (Reinforced isolation)
Protections: short circuit/ overload/ over voltage/ DC input under voltage/ DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection

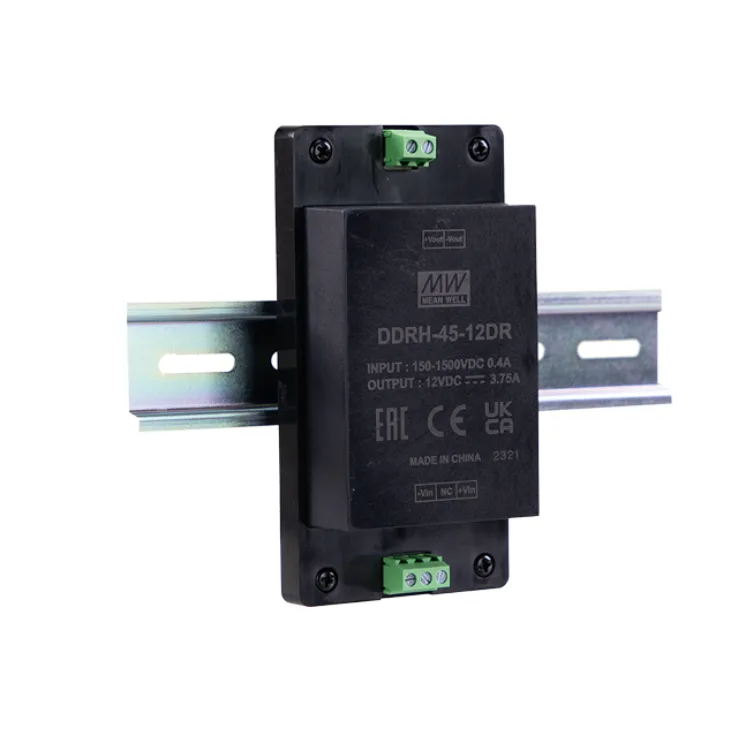

Can be installed on DIN rail TS-35*7.5 or 15 (DR Type)
-40~80℃ ultra-wide operating temperature (>+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Spec	DDRH-45-12 P/ST or DR	DDRH-45-15 P/ST or DR	DDRH-45-24 P/ST or DR	DDRH-45-48 P/ST or DR
Wattage	45	45	45	45
Input Voltage	150~1500Vdc	150~1500Vdc	150~1500Vdc	150~1500Vdc
Output Current	3.75	3	1.87	0.938
Output Voltage	12	15	24	48
Dimensions	P Type: 8963.525mm, ST Type: 1357032mm, DR Type: 1357043.5mm	P Type: 8963.525mm, ST Type: 1357032mm, DR Type: 1357043.5mm	P Type: 8963.525mm, ST Type: 1357032mm, DR Type: 1357043.5mm	P Type: 8963.525mm, ST Type: 1357032mm, DR Type: 1357043.5mm
Working Temperature	-40 ~ +80℃ (Refer to "Derating Curve")
Safety Standards	IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested)
EMC Standards	BS EN/EN55032
