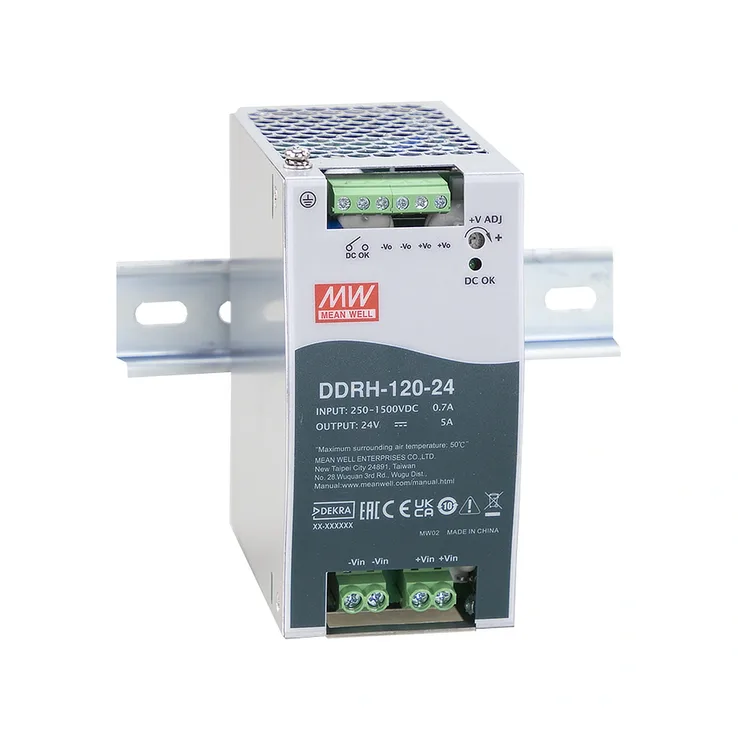

DDRH-120 Series DC-DC Power Supplies 100.8–120W

Download Datasheet
Models:
  • DDRH-120-12
  • DDRH-120-24
  • DDRH-120-32
  • DDRH-120-48
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

DDRH-120 Series Features:

DDRH-120 series is a 250~1500Vdc high reliable ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load.

Features:

  • 250~1500Vdc 6:1 ultra-wide input range
  • Withstand 1700Vdc surge input for 10 seconds
  • 63mm slim width
  • 4KVac I/O high isolation (reinforced isolation)
  • Protections: short circuit/ overload/ over voltage/ over temperature DC input under voltage/ DC input reverse polarity
  • Fanless design, cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • -40~80°C ultra-wide operating temperature (>50°C derating)
  • Over voltage category II
  • Operating altitude up to 5000 meters
  • DC OK relay contact
  • DC output voltage adjustable (12~15V, 24~29V, 30~36V, 48~58V)
  • 3 years warranty
Wattage 100.8 120 120 120
Input Voltage 250~1500Vdc 250~1500Vdc 250~1500Vdc 250~1500Vdc
Output Current 8.4 5 3.75 2.5
Output Voltage 12 24 32 48
Dimensions 63x125.2x115mm 63x125.2x115mm 63x125.2x115mm 63x125.2x115mm
Working Temperature -40~80°C
Safety Standards IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved; Design refer to UL1741(By request)
EMC Standards BS EN/EN55032(CISPR32)
