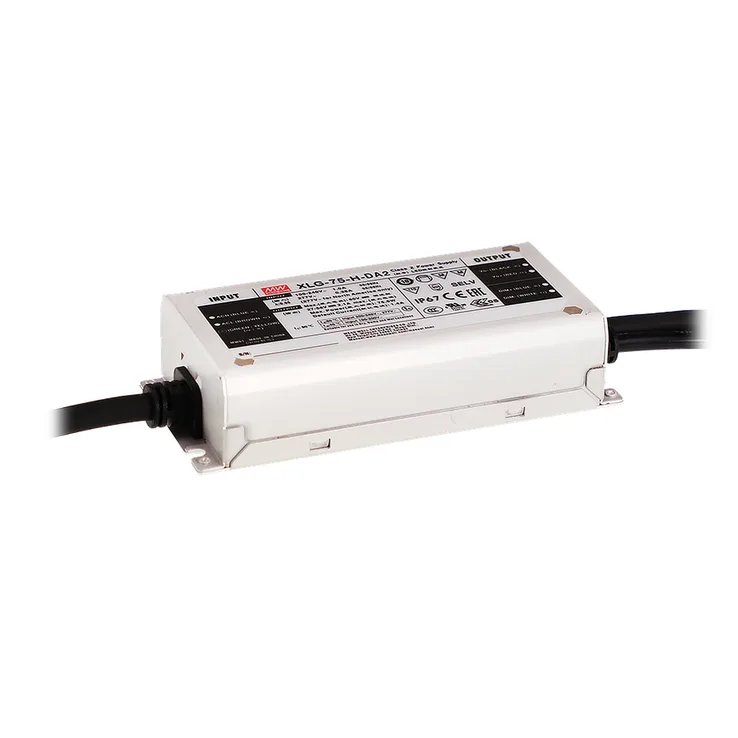

XLG-75-DA2 Series DALI-2 Constant Current LED Drivers 74.9–75.6W

Models:	XLG-75-L-DA2 XLG-75-H-DA2
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

XLG-75-DA2 Series Features:

XLG-75-DA2 series is a 75W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function.

Features:

Wide input range 100~305VAC (Class I)
Full power output at 70~100% constant power mode operation
Metal case with IP67, suitable for outdoor application
Class 2 power unit (except for L type)
Surge protection with 6KV/4KV
DALI-2 dimming with minimum level 8%
India (EESL) version with input over voltage protection can survive input voltage stress of 440VAC for 48 hours
Protection functions: SCP/OTP
Life time >50,000hrs. and 5 years warranty

Spec	XLG-75-L-DA2	XLG-75-H-DA2
Wattage	74.9	75.6
Input Voltage	100~305VAC	100~305VAC
Output Current	700mA	1400mA
Output Voltage	115v	60V
Dimensions	1406332mm (LWH)	1406332mm (LWH)
Working Temperature	Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Safety Standards	UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;, GB19510.1,GB19510.14; EAC TP TC 004; IP67 approved
EMC Standards	BS EN/EN55015(CISPR15) ,GB/T17743, BS EN/EN61000-3-2 ,GB/T17625.1, BS EN/EN61000-3-3
