Mean Well Mean Well logo

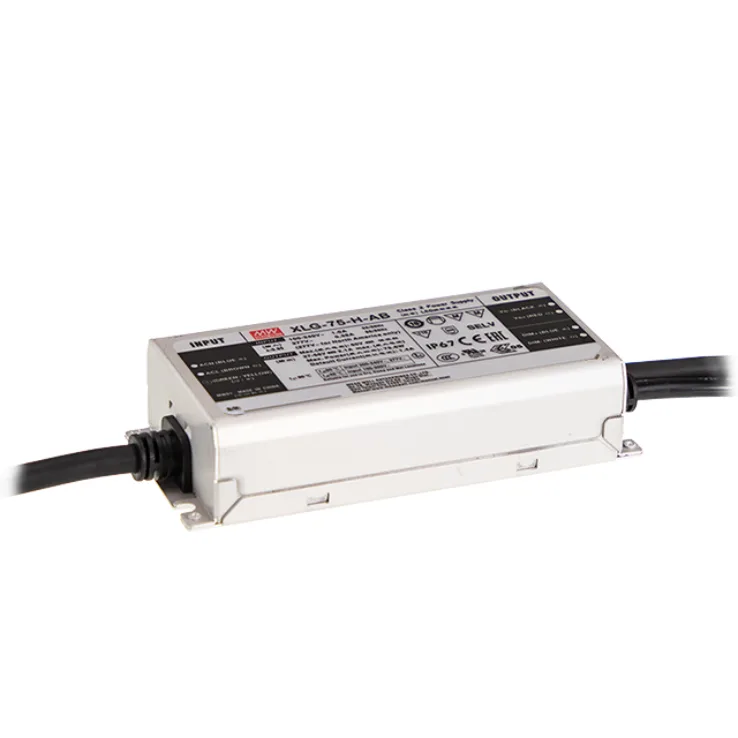

Mean Well XLG-75-AB Series 0-10V Dimmable Constant Current LED Drivers 75W

Download Datasheet
Models:
  • XLG-75-L-AB
  • XLG-75-H-AB
Manufacturer: Mean Well
Type: Constant Current LED Drivers

XLG-75-AB Series Features:

Wide input range 100-305VAC(Class I)

Metal case with IP67 , suitable for outdoor application

Other features:

  • Surge protection with 6KV/4KV (10KV/6KV optional)
  • 3in1 dimming function (Dim to off and Isolation design)
  • Protection functions: OVP/SCP/OCP/OTP
  • Life time >50,000hrs. and 5 years warranty
Wattage 75 75
Input Voltage 100-305VAC, 142-431VDC 100-305VAC, 142-431VDC
Output Current 350-1050mA 650-2100mA
Output Voltage Options Single Single
DC output adjustment 53-107V 27-56V
Dimensions 140 x 63 x 32 140 x 63 x 32
Working Temperature -20 - +95C
Safety Standards UL8750(type"HL"), UL879, CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1 , GB19510.14; EAC TP TC 004;IS15885(Part2/Sec13)(for XLG-75I type only); IP67 approved
EMC Standards EN55015(CISPR15) ,GB/T17743, EN61000-3-2 , GB/T17625.1, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
