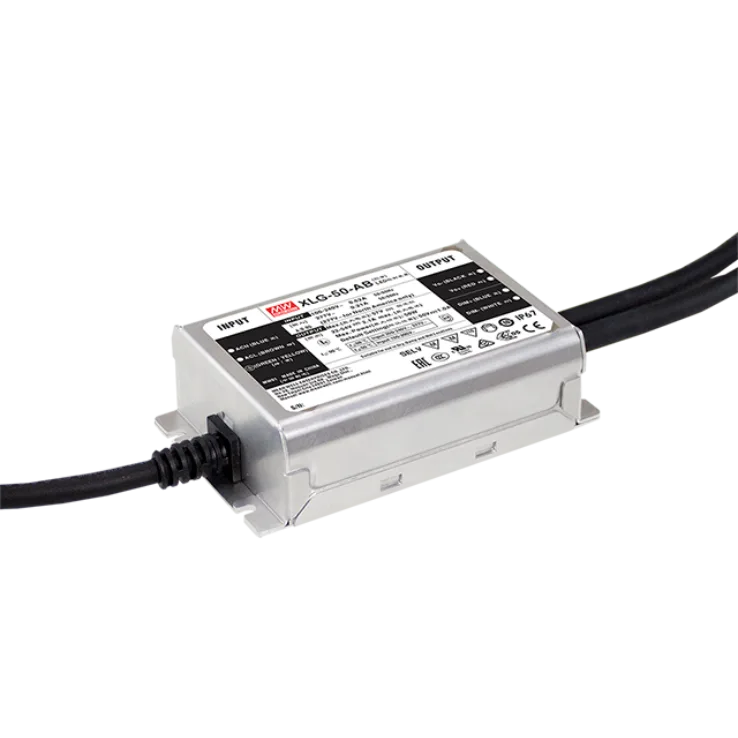

XLG-50-A Series Non-dim Constant Current LED Drivers

Models:	XLG-50-A
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

XLG-50-A Series Features:

XLG-50 series is a 50W AC/DC LED driver featuring the constant power mode output.

Features:

Constant power mode output
Metal housing design with functional ground
Built-in active PFC function
Class 2 power unit
No load/standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer 3 in 1 dimming function (Dim to off and isolation design)
Typical lifetime>50000 hours
5 years warranty

Spec	XLG-50-A
Working Temperature	Tcase=-40~+90°C
Safety Standards	UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC EN61347-1, AS/NZS EN61347-2-13 independent, EN62384;IP67;GB19510.1, GB19510-14, EAC TP TC 004, J61347-1(H29), J61347-2-13(H29), KC61347-1, KC61347-2-13, ISI5885(Part 2/Sec13)(for XLG-50I type only); NOM-058-SCFI-2017approved
EMC Standards	EN55015(CISPR15) ,GB/T17743, EN55015(CISPR15), GB/T17743, EN61000-3-2 , GB/T17625.1, EN61000-3-3,
