MEAN WELL MEAN WELL logo

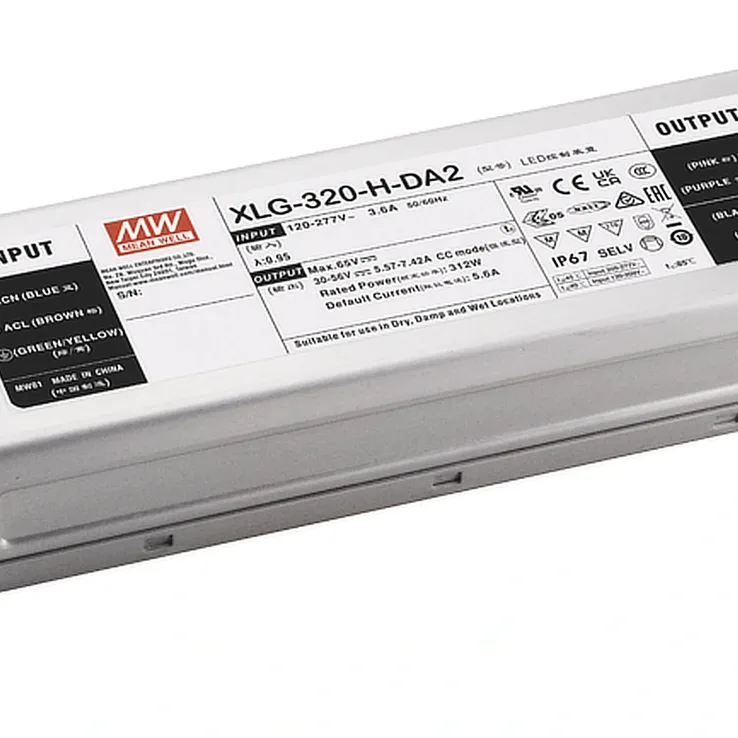

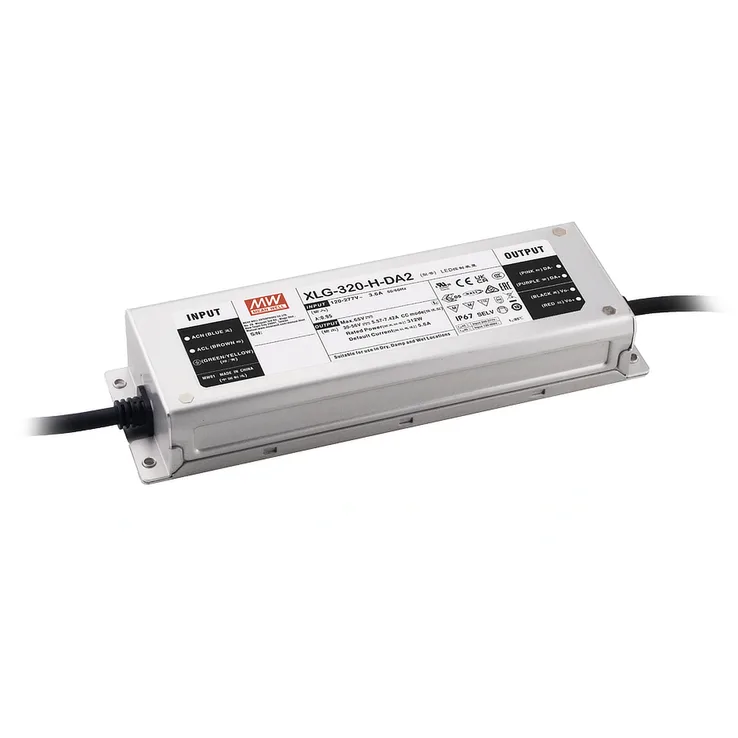

XLG-320-DA2 Series DALI-2 Constant Current LED Drivers 310.8–315W

Download Datasheet
Models:
  • XLG-320-L
  • XLG-320-M
  • XLG-320-H
Manufacturer: MEAN WELL
Type: Constant Current LED Drivers

XLG-320-DA2 Series Features:

XLG-320-DA2 series is a 320W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function.

Features:

  • Wide input range 100~305VAC (Class I)
  • Full power output at 70~100% constant power mode operation
  • Metal case with IP67, suitable for outdoor application
  • Surge protection with 6KV/4KV
  • DALI-2 dimming with minimum level 8%
  • 12V/250mA auxiliary power available (optional)1
  • India (EESL) version with input over voltage protection can survive input voltage stress of 440VAC for 48 hours
  • Protection functions: SCP/OTP
  • Life time >50,000hrs. and 5 years warranty
Wattage 315 310.8 312
Input Voltage 100~305VAC 100~305VAC 100~305VAC
Output Current 1400mA 2800mA 5600Ma
Output Voltage 340V 180V 65V
Dimensions 246*77*39.5mm (L*W*H) 246*77*39.5mm (L*W*H) 246*77*39.5mm (L*W*H)
Working Temperature Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Safety Standards UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14; EAC TP TC 004; IP67 approved
EMC Standards BS EN/EN55015(CISPR15) ,GB/T17743, BS EN/EN61000-3-2 ,GB/T17625.1, BS EN/EN61000-3-3
