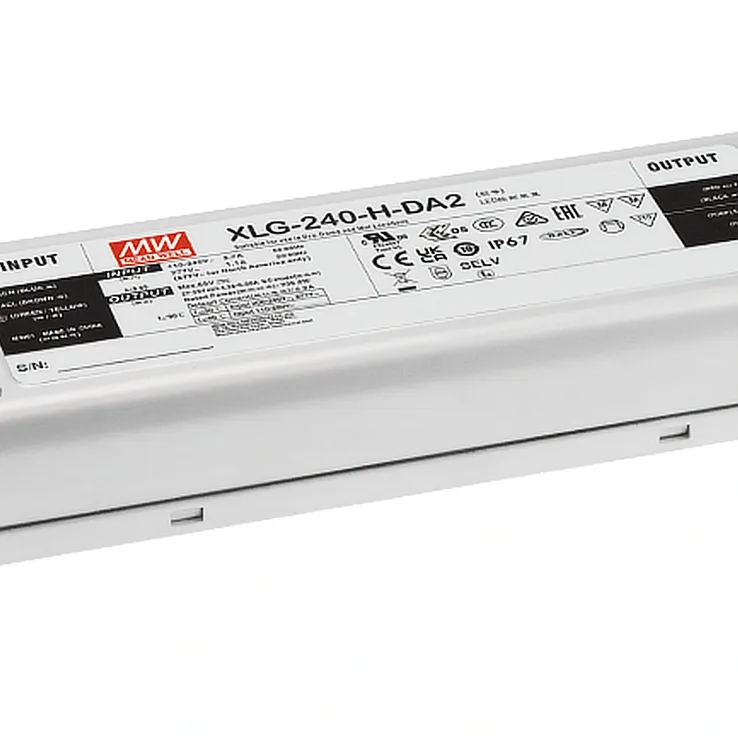

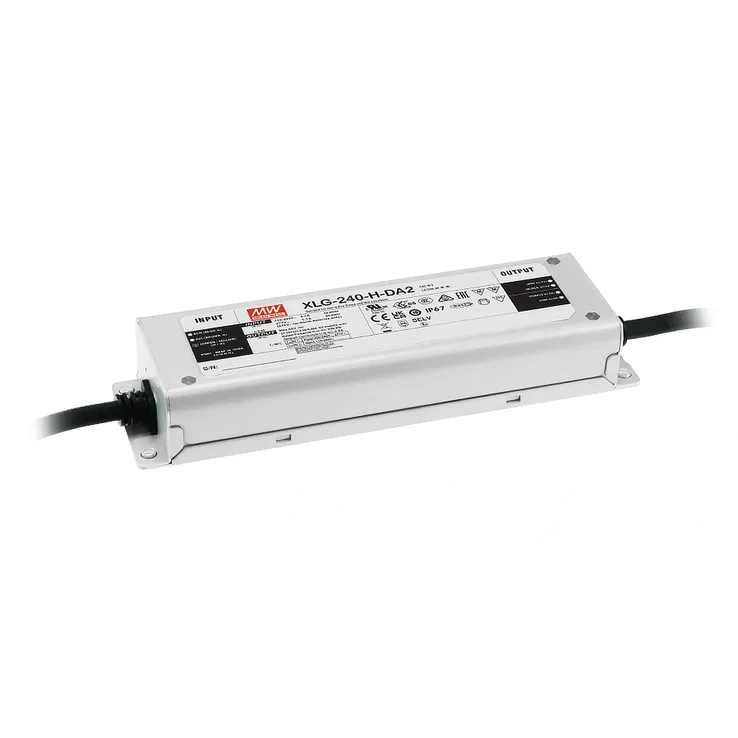

XLG-240-DA2 Series DALI-2 Constant Current LED Drivers 239.4–239.6W

Models:	XLG-240-L XLG-240-M XLG-240-H
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

XLG-240-DA2 Series Features:

XLG-240-DA2 series is a 240W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function.

Features:

Wide input range 100~305VAC (Class I)
Full power output at 70~100% constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV
DALI-2 dimming with minimum level 8%
12V/250mA auxiliary power available (optional)
India (EESL) version with input over voltage protection can survive input voltage stress of 440VAC for 48 hours
Protection functions: SCP/OTP
Life time >50,000hrs. and 5 years warranty

Spec	XLG-240-L	XLG-240-M	XLG-240-H
Wattage	239.4	239.4	239.6
Input Voltage	100~305VAC	100~305VAC	100~305VAC
Output Current	700mA	1400mA	4900mA
Output Voltage	380V	197V	65V
Dimensions	2196335.5mm (LWH)	2196335.5mm (LWH)	2196335.5mm (LWH)
Working Temperature	Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Safety Standards	UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14; EAC TP TC 004; IP67 approved
EMC Standards	BS EN/EN55015(CISPR15) ,GB/T17743, BS EN/EN61000-3-2 ,GB/T17625.1, BS EN/EN61000-3-3
