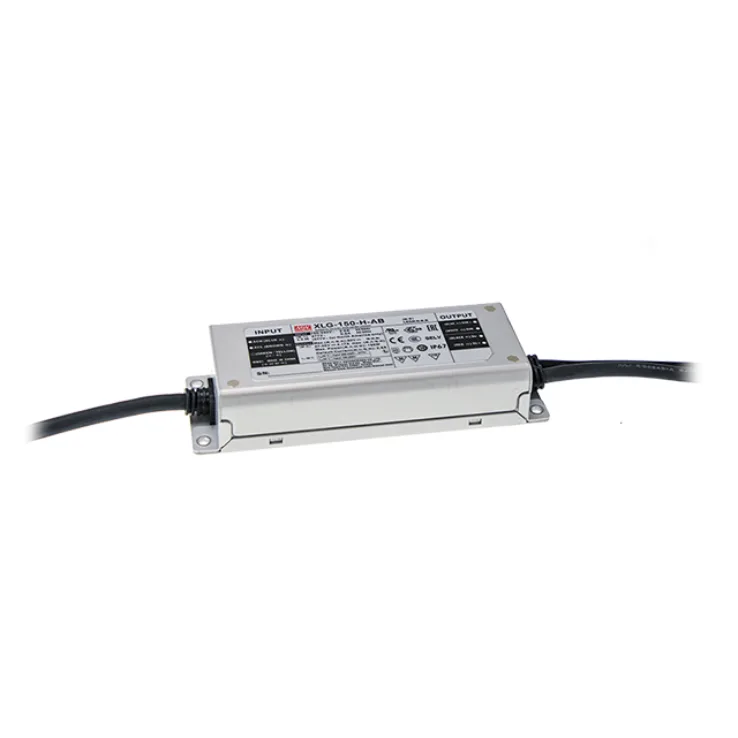

XLG-150-AB Series 0-10V Dimmable Constant Current LED Drivers 150W

Download Datasheet
Models:
  • XLG-150-H-AB
  • XLG-150-L-AB
  • XLG-150-M-AB
Manufacturer: MEAN WELL
Type: Constant Current LED Drivers

XLG-150-AB Series Features:

Wide input range 100-305VAC(Class I)

Metal case with IP67 , suitable for outdoor application

Other features:

  • Surge protection with 6KV/4KV (10KV/6KV optional)
  • 3in1 dimming function (Dim to off and Isolation design)
  • Protection functions: OVP/SCP/OCP/OTP
  • Life time >50,000hrs. and 5 years warranty
Wattage 150 150 150
Input Voltage 100-305VAC, 142-431VDC 100-305VAC, 142-431VDC 100-305VAC, 142-431VDC
Output Current 2800mA 700mA 1400mA
Output Voltage 60V 225V 115V
Output Voltage Options Single Single Single
DC output adjustment 27-56V 120-214V 60-107V
Dimensions 180 x 63 x 35.5 180 x 63 x 35.5 180 x 63 x 35.5
Working Temperature -40 - +95°C
Safety Standards UL8750ENEC EN61347-1, EN61347-2-13 independent, EN62384(typebHLb), UL879,CSA C22.2 No. 250.13-12, GB19510.1 GB19510.14,; EAC TP TC 004;IS15885(Part2/Sec13)(for XLG-150I type only);IP67 approved
EMC Standards EN55015(CISPR15) ,GB/T17743, EN61000-3-2 , GB/T17625.1, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
