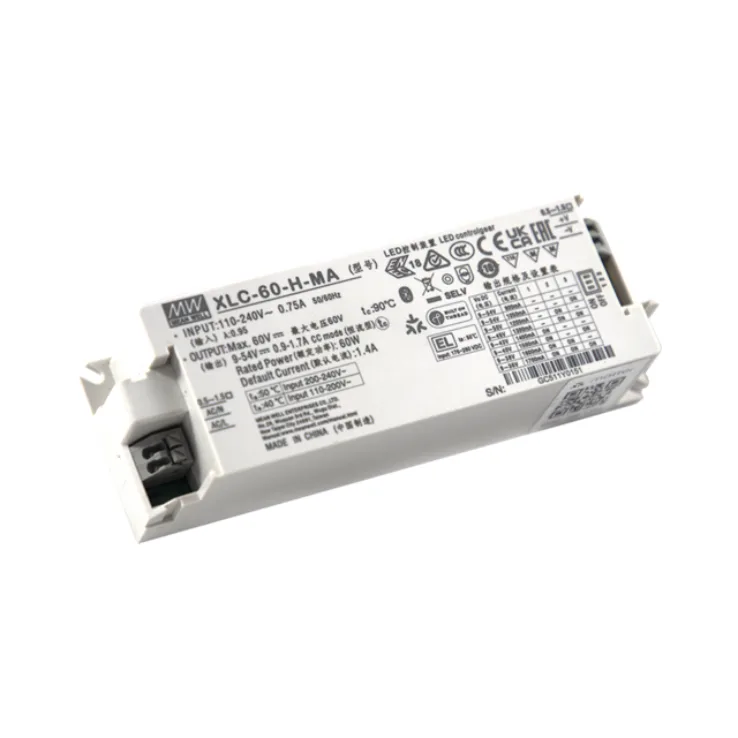

XLC-60-MA Series Constant Current LED Drivers 60W

Models:	XLC-60-12-MA XLC-60-24-MA XLC-60-48-MA
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

XLC-60-MA Series Features:

XLC-60-MA series is a 60W with constant voltage output LED driver

Features:

Constant power mode output with multiple stage selectable by DIP switch (H-type)
Constant voltage mode output (12/24/48V)
Plastic housing with class II and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.1% (12/24/48V)
Minimum dimming level 0.5% (H-type)
Matter over thread, Matter 1.3 specification
5 years warranty

Spec	XLC-60-12-MA	XLC-60-24-MA	XLC-60-48-MA
Wattage	60	60	60
Input Voltage	100~305VAC	100~305VAC	100~305VAC
Output Current	5A	2.5A	1.25A
Output Voltage	12V	24V	48V
Dimensions	176 X 45 X 32 mm	176 X 45 X 32 mm	176 X 45 X 32 mm
Working Temperature	-25~90 C
Safety Standards	CSA ENEC BS EN EN BS EN EN EL C22.2 No. 250.13-12; / 61347-1, / 61347-2-13( ) appendix J suitable for emergency installations ( input 176-280 ); / 62384 , , 004 approved; DC VDC BS EN EN EAC TP TC GB/T 19510.1, GB/T 19510.213 Design refer to / 61347-1, / 61347-2-13
