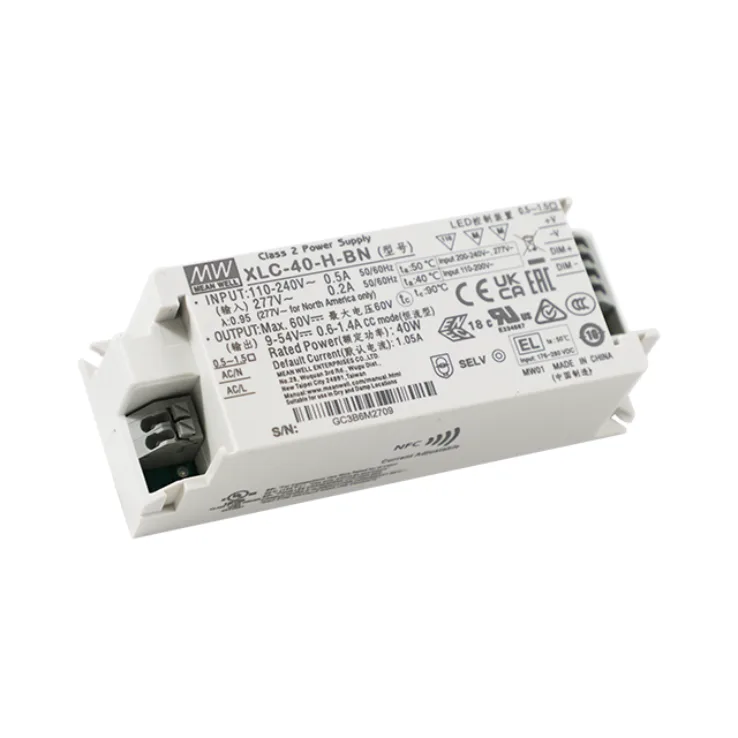

XLC-40 Series (Constant current DALI2) DALI-2 Constant Current LED Drivers 40W

Models:	XLC-40-H-DA2 XLC-40-H-DA2N XLC-40-H-DA2S XLC-40-H-DA2SN
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

XLC-40 Series (Constant current DALI2) Features:

XLC-40 Series is a 40w series 40W with constant power and constant voltage output LED driver

Features:

Constant power mode output with multiple stage selectable by dip switch or NFC setting (H-type)
Constant voltage mode output (12V/24V)
Plastic housing with class II and PFC design
Meet UL 8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) function application
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions:3 in 1 dimming (dim-to-off) DALI-2 + Push dimming
5 years warranty

Spec	XLC-40-H-DA2	XLC-40-H-DA2N	XLC-40-H-DA2S	XLC-40-H-DA2SN
Wattage	40	40	40	40
Input Voltage	100 ~ 305VAC	100 ~ 305VAC	100 ~ 305VAC	100 ~ 305VAC
Output Current	0.6~1.4A	0.6~1.4A	0.6~1.4A	0.6~1.4A
Output Voltage	60V	60V	60V	60V
Dimensions	147 X 40 X 32 mm	147 X 40 X 32 mm	147 X 40 X 32 mm	147 X 40 X 32 mm
Working Temperature	-25 ~ 90 C	-25 ~ 90
Safety Standards	ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384, BIS IS15885(Part2/Sec13)(NOTE 14), GBT195101, GBT19510213, EAC TP TC 004,UL8750(Class P); CSA C22.2 No. 250.13-12 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
