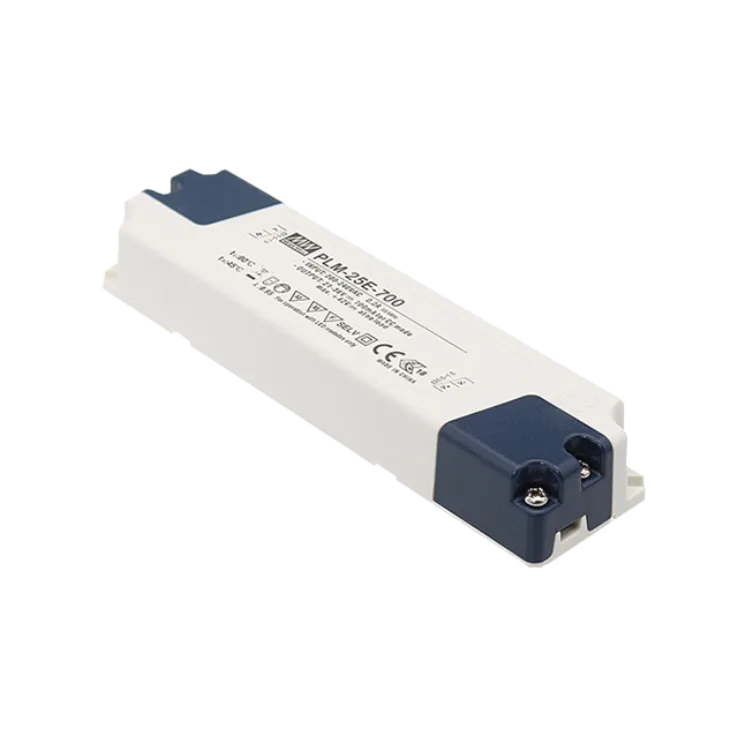

PLM-25E Series Non-dim Constant Current LED Drivers 25–25.2W

Download Datasheet
Models:
  • PLM-25E-350
  • PLM-25E-500
  • PLM-25E-700
  • PLM-25E-1050
Manufacturer: MEAN WELL
Type: Constant Current LED Drivers

PLM-25E Series Features:

Universal input/ Full range (180~295VAC)

Built-in active PFC function

Protections: Short circuit

Other features:

  • No load power consumption <0.5W
  • Cooling by free air convection
  • Fully isolated plastic case
  • Small and compact size
  • Class II power unit, no FG
  • 100% full load burn-in test
  • High reliability, low cost
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty
Wattage 25.2 25 25.2 25.2
Input Voltage 180-295VAC 180-295VAC 180-295VAC 180-295VAC
Output Current 350mA 500mA 700mA 1050mA
Output Voltage Options Single Single Single Single
DC output adjustment 42-72V 30-50V 21-36V 14-24V
Dimensions 145x 38x 22 145x 38x 22 145x 38x 22 145x 38x 22
Working Temperature -30-+45°C
Safety Standards ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria B (surge 2KV)
