MEAN WELL

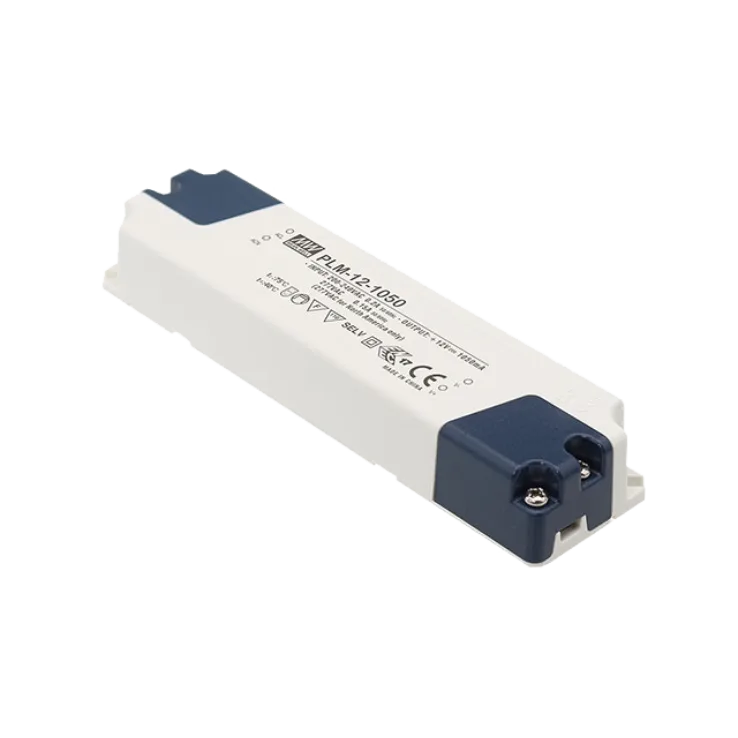

PLM-12 Series Non-dim Constant Current LED Drivers 12–12.6W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
PLM-12 Series Features:
Constant current design
Built-in active PFC function
Protections: Short circuit
Other features:
- Universal input/ Full range (110~295VAC)
- No load power consumption <0.5W
- Cooling by free air convection
- Fully isolated plastic case
- Small and compact size
- Class II power unit, no FG
- 100% full load burn-in test
- High reliability, low cost
- Suitable for LED lighting and moving sign applications
- 2 years warranty
| Wattage | 12 | 12.6 | 12.6 |
|---|---|---|---|
| Input Voltage | 110~295VAC | 110~295VAC | 110~295VAC |
| Output Current | 0.5A | 0.7A | 1.05A |
| Output Voltage | 15~24V | 11~18V | 7~12V |
| Dimensions | 145*38*22mm | 145*38*22mm | 145*38*22mm |
| Working Temperature | -30~+50°C | ||
| Safety Standards | UL8750, CSA C22.2 No.250.13-12(for balnk type only); ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1 (for E type only), EAC TP TC 004, IP30 approved | ||
| EMC Standards | Compliance to EN55015, GB17743, GB17625.1(for E type only), EN61000-3-2 Class C (>60% load); EN61000-3-3, EAC TP TC 020 | ||
