MEAN WELL

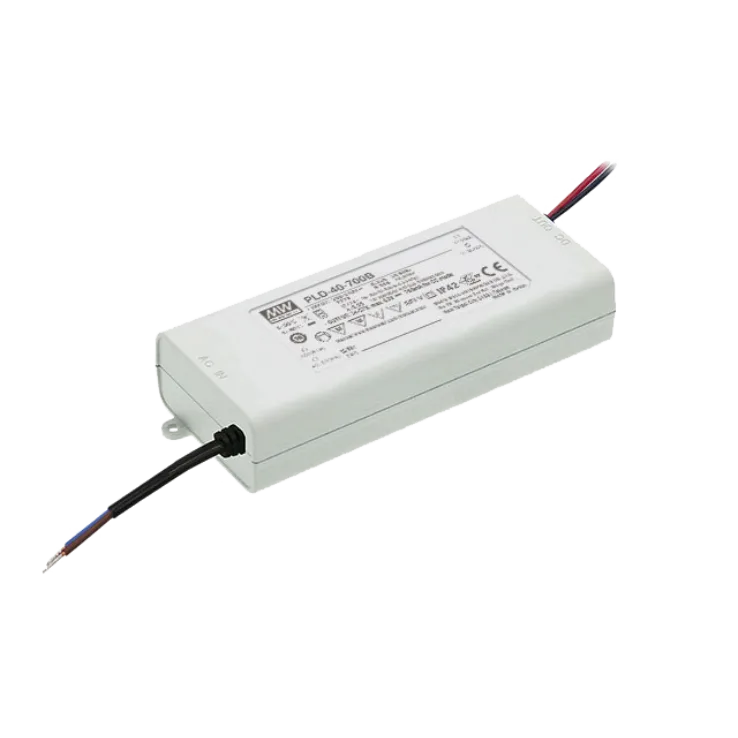

PLD-40 Series Non-dim Constant Current LED Drivers 40W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
PLD-40 Series Features:
180~295VAC input
Built-in active PFC function
Protections: Short circuit/ Over temperature
Other features:
- Constant current design
- Fully isolated plastic case
- IP30 design
- Class 2 power unit/ Pass LPS
- Isolation class II, no F.G.
- 100% full burn-in test
- Cooling by free air convection
- 3 years warranty
| Wattage | 40 | 40 | 40 | 40 | 40 | 40 |
|---|---|---|---|---|---|---|
| Input Voltage | 180~295VAC | 180~295VAC | 180~295VAC | 180~295VAC | 180~295VAC | 180~295VAC |
| Output Current | 350mA | 500mA | 700mA | 1050mA | 1750mA | 1400mA |
| Output Voltage Options | Single | Single | Single | Single | Single | Single |
| Dimensions | 128x 60x 31.5 | 128x 60x 31.5 | 128x 60x 31.5 | 128x 60x 31.5 | 128x 60x 31.5 | 128x 60x 31.5 |
| Working Temperature | -30~+50°C (Refer to "Derating Curve") | |||||
| Safety Standards | UL8750, ENEC EN61347-1, EN61347-2-13 independent, IP30 approved | |||||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A | |||||
