MEAN WELL

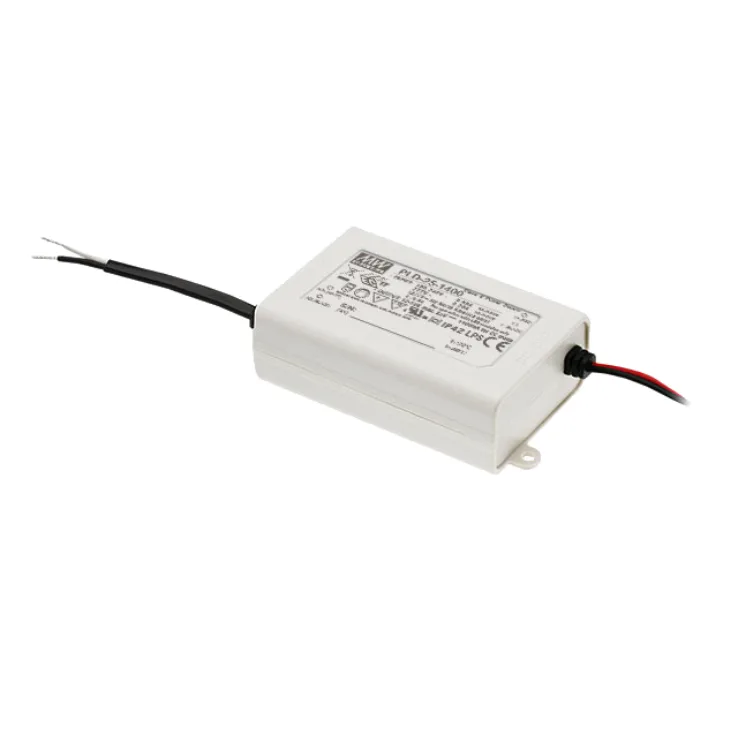

PLD-25 Series Non-dim Constant Current LED Drivers 20–25W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
PLD-25 Series Features:
Built-in active PFC function
Constant current design
Protections: Short circuit/ Over temperature
Other features:
- Fully isolated plastic case
- Constant current design
- Class 2 power unit/ Pass LPS
- Isolation class II, no F.G.
- Cooling by free air convection
- 3 years warranty
| Wattage | 20 | 25 | 25 | 25 |
|---|---|---|---|---|
| Input Voltage | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC |
| Output Current | 350mA | 700mA | 1050mA | 1400mA |
| Output Voltage Options | Single | Single | Single | Single |
| Working Temperature | -30~+50°C (Refer to "Derating Curve") | |||
| Safety Standards | UL8750, ENEC EN61347-1, EN61347-2-13 | |||
| EMC Standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 | |||
