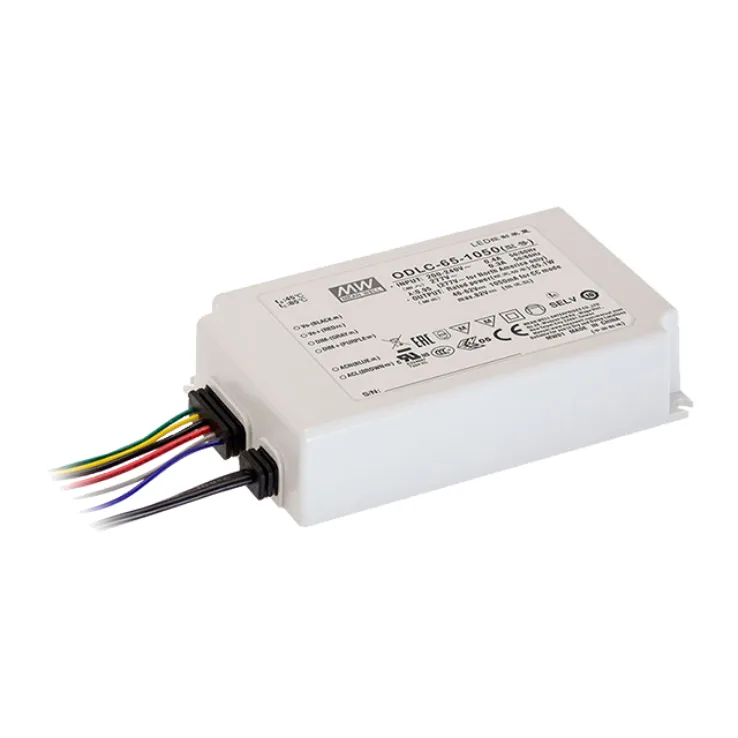

ODLC-65 Series Constant Current LED Drivers 63–65.1W

Download Datasheet
Models:
  • ODLC-65-700
  • ODLC-65-1050
  • ODLC-65-1400
  • ODLC-65-1750
Manufacturer: MEAN WELL
Type: Constant Current LED Drivers

ODLC-65 Series Features:

ODLC-65 series is a 65W LED AC/DC driver featuring the constant current mode output with flicker free design. ODC-65 operates from 180~295VAC and offers models with different rated current ranging between 700mA and 1750mA.

Features:

  • Constant current mode output
  • Flicker free design
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption <0.5W(Blank Type), standby power consumption <0.5W(DA-Type)
  • IP67 rating for indoor or outdoor installations
  • Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
  • 3 years warranty
Wattage 65.1 65.1 64.4 63
Input Voltage 180~295VAC 180~295VAC 180~295VAC 180~295VAC
Output Current 700mA 1050mA 1400mA 1750mA
Output Voltage 118V 82V 60V 53V
Output Voltage Options 69~93V 46~62V 34~46V 27~36V
Dimensions 121*77*28.5mm (L*W*H) 121*77*28.5mm (L*W*H) 121*77*28.5mm (L*W*H) 121*77*28.5mm (L*W*H)
Working Temperature Tcase=-20~+85°C
Safety Standards UL8750(type"HL"); CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-1 & EN61347-2-13 independant, EN62384, GB19510.1, GB19510.14; EAC TP TC 004, IP67 approved
