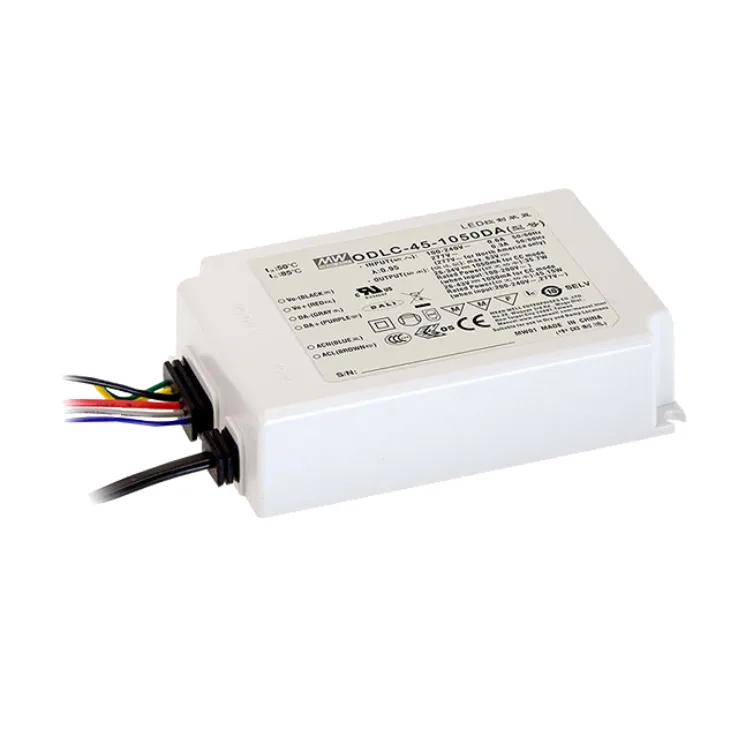

Mean Well ODLC-45DA Series DALI Dimmable Constant Current LED Drivers 33.25–45.15W

Download Datasheet
Models:
  • ODLC-45-350DA
  • ODLC-45-500DA
  • ODLC-45-700DA
  • ODLC-45-1050DA
  • ODLC-45-1400DA
Manufacturer: Mean Well
Type: Constant Current LED Drivers

ODLC-45DA Series Features:

ODLC-45 series is a 45W LED AC/DC driver featuring the constant current mode output with flicker free design. ODLC-45 operates from 90~295VAC and offers models with different rated current ranging between 350mA and 1400mA.

Features:

  • Constant current mode output
  • Flicker free design
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption <0.5W(Blank-Type), standby power consumption <0.5W (DA-Type)
  • IP67 rating for indoor or outdoor installations
  • Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
  • 3 years warranty


Wattage 33.25 45 44.8 45.15 44.8
Input Voltage 90~295VAC 90~295VAC 90~295VAC 90~295VAC 90~295VAC
Output Current 350mA 500mA 700mA 1050mA 1400mA
Output Voltage 118V 115V 84V 63V 50V
Output Voltage Options 57~95V 54~90V 38~64V 26~43V 19~32V
Dimensions 111*77*28.5mm 111*77*28.5mm 111*77*28.5mm 111*77*28.5mm 111*77*28.5mm
Working Temperature Tcase=-20~+85°C
Safety Standards UL8750(type"HL"), CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independant, EN62384, GB19510.1, GB19510.14; BIS IS15885 (for ODLC-45-700,1050,700DA, 1050DA only), EACTP TC 004, IP67approved
