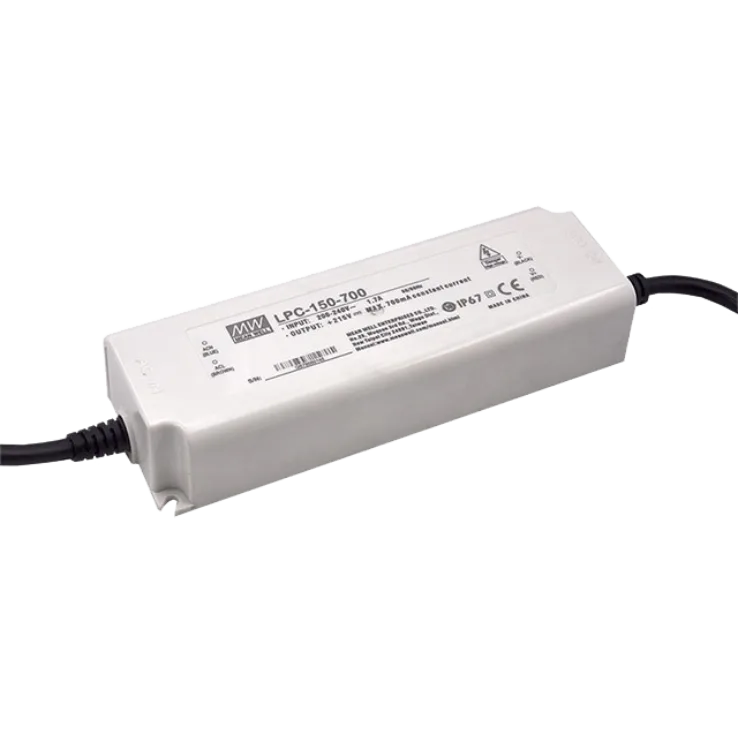

LPC-150 Series Non-dim Constant Current LED Drivers 150–151.9W

Models:	LPC-150-350 LPC-150-500 LPC-150-700 LPC-150-1050 LPC-150-1400 LPC-150-1750 LPC-150-2100 LPC-150-2450 LPC-150-2800 LPC-150-3150
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

LPC-150 Series Features:

Constant current design

Protections: Short circuit / Over voltage / Over temperature

Spec	LPC-150-350	LPC-150-500	LPC-150-700	LPC-150-1050	LPC-150-1400	LPC-150-1750	LPC-150-2100	LPC-150-2450	LPC-150-2800	LPC-150-3150
Wattage	150.5	150	150.5	151.2	151.2	150.5	151.2	151.9	151.2	151.2
Input Voltage	180-305VAC	180-305VAC	180-305VAC	180-305VAC	180-305VAC	180-305VAC	180-305VAC	180-305VAC	180-305VAC	180-305VAC
Output Current	350mA	500mA	700mA	1050mA	1400mA	1750mA	2100mA	2450mA	2800mA	3150mA
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	215-430V	150-300V	107-215V	72-144V	54-108V	43-86V	36-72V	31-62V	27-54V	24-48V
Dimensions	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5
Working Temperature	-25-+50°C
Safety Standards	IP67 approved, refer to EN60950-1
EMC Standards	Compliance to EN55022(CISPR22) Class B; EN61000-3-2 Class A (<80% load); EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
