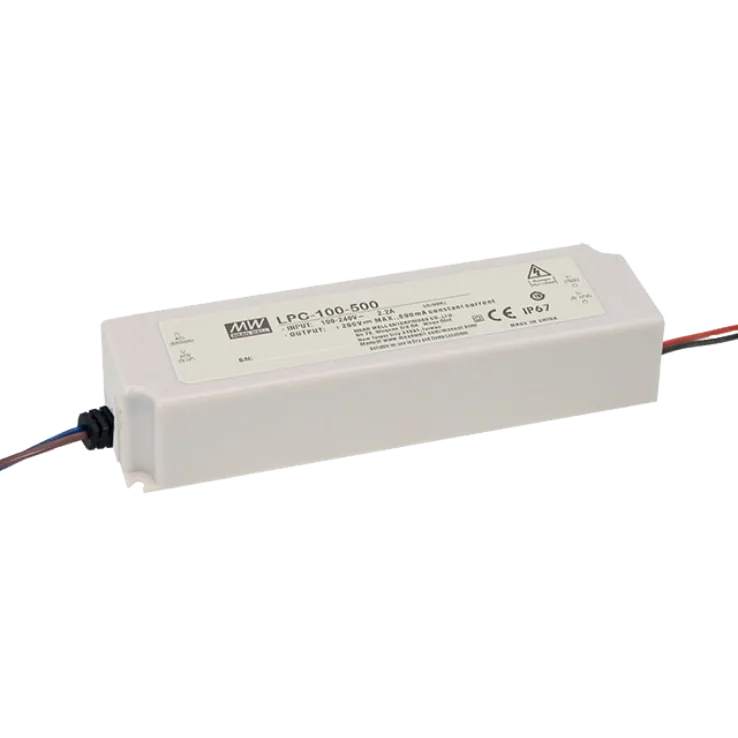

LPC-100 Series Non-dim Constant Current LED Drivers 100–101.5W

Models:	LPC-100-350 LPC-100-500 LPC-100-700 LPC-100-1050 LPC-100-1400 LPC-100-1750 LPC-100-2100
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

LPC-100 Series Features:

Constant current design

Protections: Short circuit / Over voltage

Spec	LPC-100-350	LPC-100-500	LPC-100-700	LPC-100-1050	LPC-100-1400	LPC-100-1750	LPC-100-2100
Wattage	100.1	100	100.1	100.8	100.8	101.5	100.8
Input Voltage	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC
Output Current	350mA	500mA	700mA	1050mA	1400mA	1750mA	2100mA
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	143-286V	100-200V	72-143V	48-96V	36-72V	29-58V	24-48V
Dimensions	190x 52x 37	190x 52x 37	190x 52x 37	190x 52x 37	190x 52x 37	190x 52x 37	190x 52x 37
Working Temperature	-25-+50°C
Safety Standards	IP67 approved, Design refer to TUV EN60950-1
EMC Standards	Compliance to EN55022 (CiSPR22) Class B; EN61000-3-2 Class A(<80% load); EN61000-3-3. Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A.
