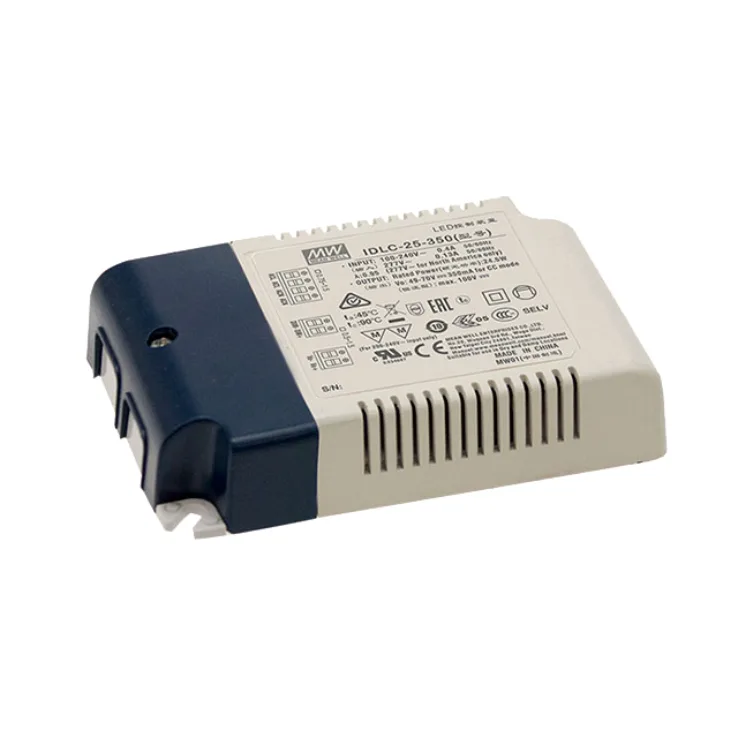

IDLC-25 Series 0-10V Dimmable Constant Current LED Drivers 25W

Download Datasheet
Models:
  • IDLC-25-350
  • IDLC-25-500
  • IDLC-25-700
  • IDLC-25-1050
Manufacturer: Mean Well
Type: Constant Current LED Drivers

IDLC-25 Series Features:

Constant Current mode output

Flicker free design

Protections: Short circuit

Other features:

  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption <0.5W (Blank-Type)
  • Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
  • 3 years warranty
Wattage 25 25 25 25
Input Voltage 90-295VAC 90-295VAC 90-295VAC 90-295VAC
Output Current 350mA 500mA 700mA 1050mA
Output Voltage Options Single Single Single Single
DC output adjustment 49-70V 35-50V 25.2-36V 16.8-24V
Dimensions 110x 75x 22 110x 75x 22 110x 75x 22 110x 75x 22
Working Temperature -20-+90°C
Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>70% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)
