MEAN WELL

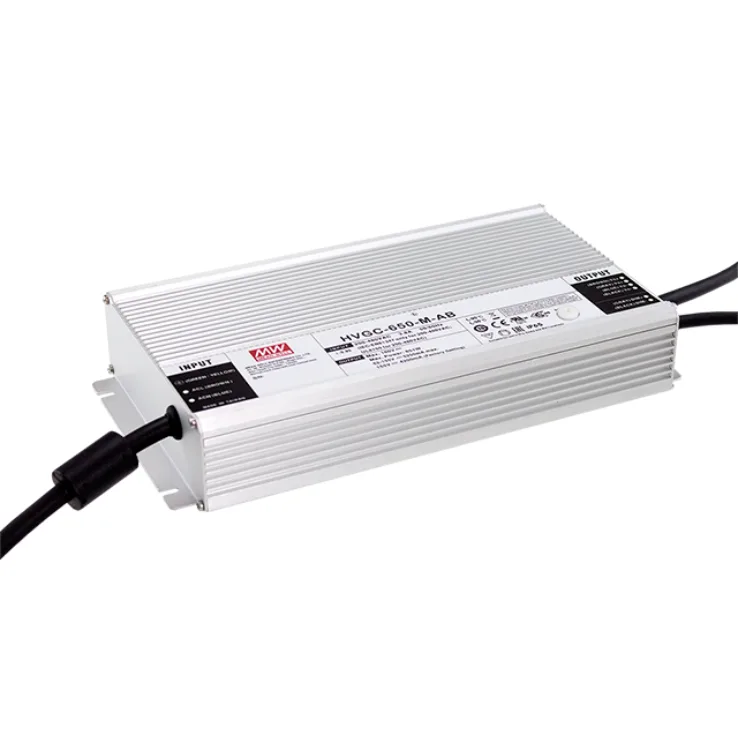

HVGC-650-AB Series 0-10V Dimmable Constant Current LED Drivers 650W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
HVGC-650-AB Series Features:
Wide input range 180~528VAC
High efficiency up to 91%
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Constant current design
- Cooling by free air convection
- Output voltage and CC level can be adjusted through internal potentiometer
- IP65 design for indoor or outdoor installations
- Suitable for LED lighting and street lighting applications
- Compliance to worldwide safety regulations for lighting
- Suitable for dry / damp / wet locations
- 5 years warranty
| Wattage | 650 | 650 | 650 | 650 |
|---|---|---|---|---|
| Input Voltage | 180-528VAC 254VDC-747VDC | 180-528VAC 254VDC-747VDC | 180-528VAC 254VDC-747VDC | 180-528VAC 254VDC-747VDC |
| Output Current | 2800mA | 4200mA | 5600mA | 11200mA |
| Output Voltage Options | Single | Single | Single | Single |
| Dimensions | 280x 144x 48.5 | 280x 144x 48.5 | 280x 144x 48.5 | 280x 144x 48.5 |
| Working Temperature | -40~+90°C | |||
| Safety Standards | UL8750 (typeb | |||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (@load>50%); EN61000-3-3, FCC Part 15 Class B, EAC TP TC 020 Compliance to EN61000-4-2,3,4,5,6,8,11 EN61547, light industry level (surge immunity Line-Earth 8KV, Line-Line 4KV), EAC TP TC 020 | |||
