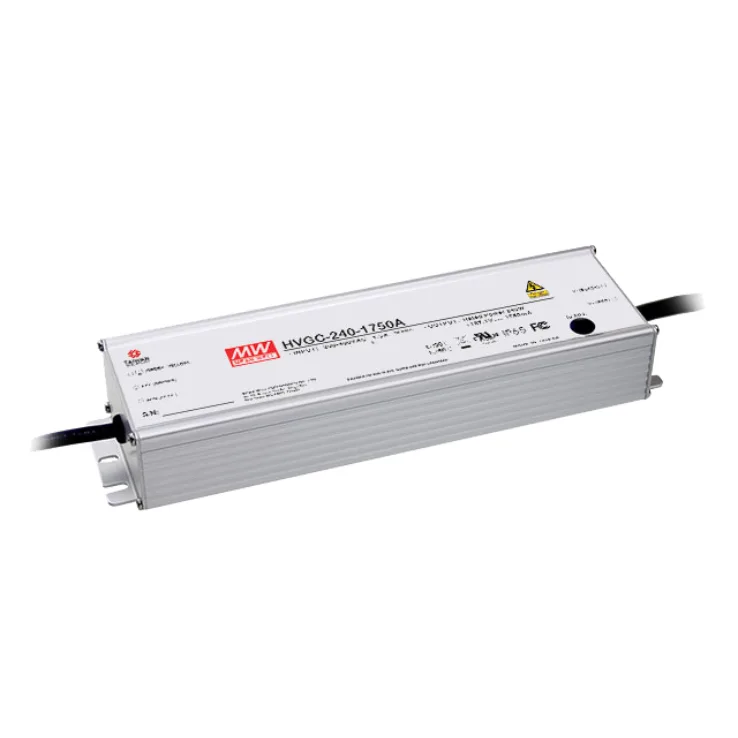

| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
Wide input range 180~528VAC
High efficiency up to 91%
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
| Wattage | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
| Input Voltage | 180~528VAC 254VDC~747VDC | 180~528VAC 254VDC~747VDC | 180~528VAC 254VDC~747VDC | 180~528VAC 254VDC~747VDC | 180~528VAC 254VDC~747VDC | 180~528VAC 254VDC~747VDC | 180~528VAC 254VDC~747VDC |
| Output Current | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | 2800mA | 3500mA |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single |
| Dimensions | 245x 68x 38.8 | 245x 68x 38.8 | 245x 68x 38.8 | 245x 68x 38.8 | 245x 68x 38.8 | 245x 68x 38.8 | 245x 68x 38.8 |
| Working Temperature | -40~+90°C (Refer to "Derating Curve") | ||||||
| Safety Standards | UL8750 (type b | ||||||
| EMC Standards | Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) | ||||||
