MEAN WELL

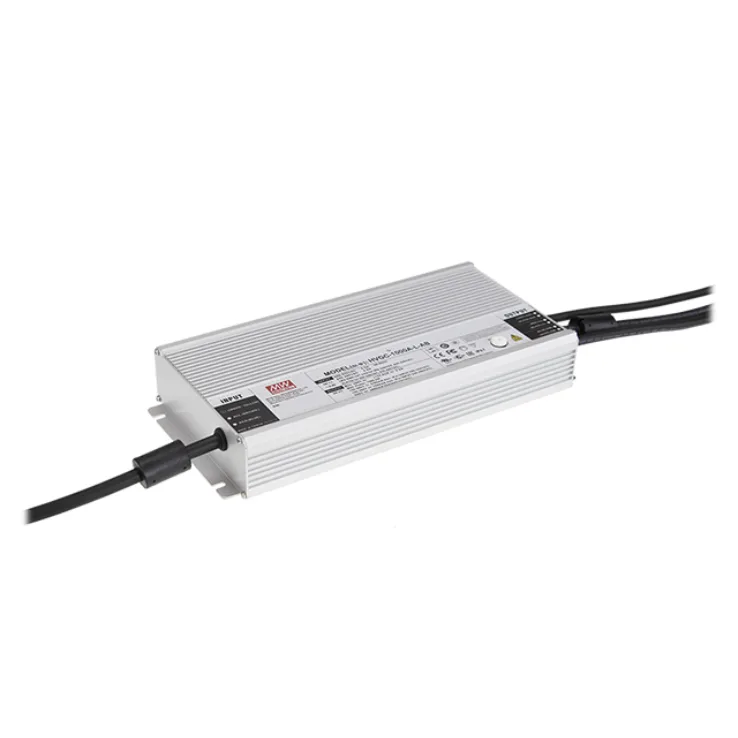

HVGC-1000-AB Series 0-10V Dimmable Constant Current LED Drivers 1000–1008W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
HVGC-1000-AB Series Features:
Wide input range 180 ~ 528VAC
Constant current mode output
Other features:
- Metal housing with Class Idesign
- Surge protection with 8KV/4KV
- Built-in active PFC function
- IP67 design for indoor or outdoor installations
- Dimming options: 3 in 1 dimming (dim-to-off); Smart timer dimming and DALI 2.0
- Auxiliary DC output 12v/500mA
- Typical lifetime>50000 hours
- 5 years warranty
| Wattage | 1000 | 1008 | 1008 |
|---|---|---|---|
| Input Voltage | 180-528VAC | 180-528VAC | 180-528VAC |
| Output Current | 2800mA | 4200mA | 5600mA |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | 2640-3280mA | 4200-5250mA | 5600-7000mA |
| Dimensions | 310 x 144 48.5 | 310 x 144 48.5 | 310 x 144 48.5 |
| Working Temperature | -40 - +90°C | ||
| Safety Standards | UL8750 (typeb | ||
| EMC Standards | EN55015(CISPR15),EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | ||
