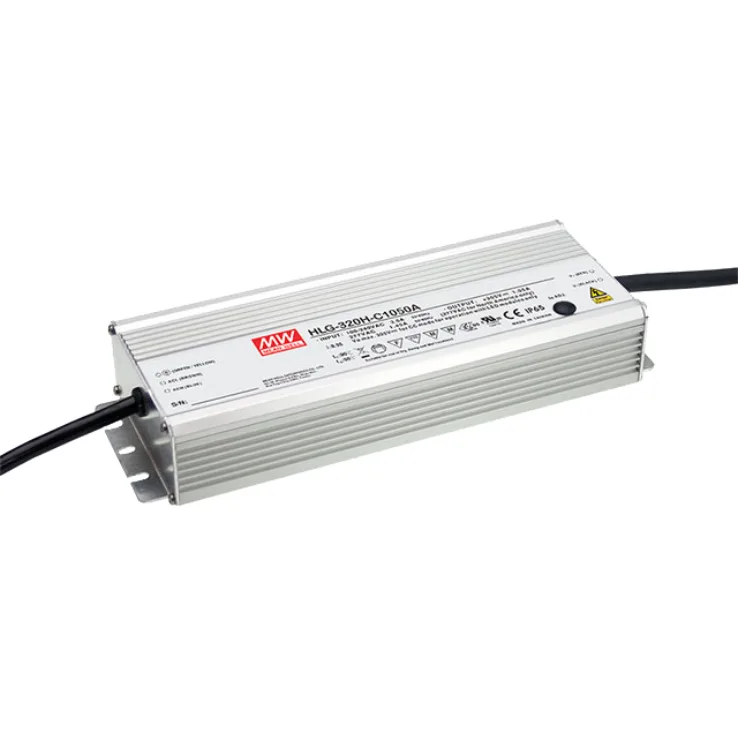

HLG-320H-CA Series Non-dim Constant Current LED Drivers 300–320W

Models:	HLG-320H-C700A HLG-320H-C1050A HLG-320H-C1400A HLG-320H-C1750A HLG-320H-C2100A HLG-320H-C2800A HLG-320H-C3500A
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

HLG-320H-CA Series Features:

Constant current design

Metal housing with class I design

Protections: Short circuit / Over voltage / Over temperature

Other features:

IP67 / IP65 design for indoor or outdoor installations
Function options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming
IP67 design for indoor or outdoor installations
Typical lifetime >62000 hours
7 years warranty

Spec	HLG-320H-C700A	HLG-320H-C1050A	HLG-320H-C1400A	HLG-320H-C1750A	HLG-320H-C2100A	HLG-320H-C2800A	HLG-320H-C3500A
Wattage	300	320	320	320	320	320	320
Input Voltage	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC
Output Current	700mA	1050mA	1400mA	1750mA	2100mA	2800mA	3500mA
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single
Dimensions	252x 90x 43.8	252x 90x 43.8	252x 90x 43.8	252x 90x 43.8	252x 90x 43.8	252x 90x 43.8	252x 90x 43.8
Working Temperature	-40~+85°C
Safety Standards	UL8750 (typeb
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
