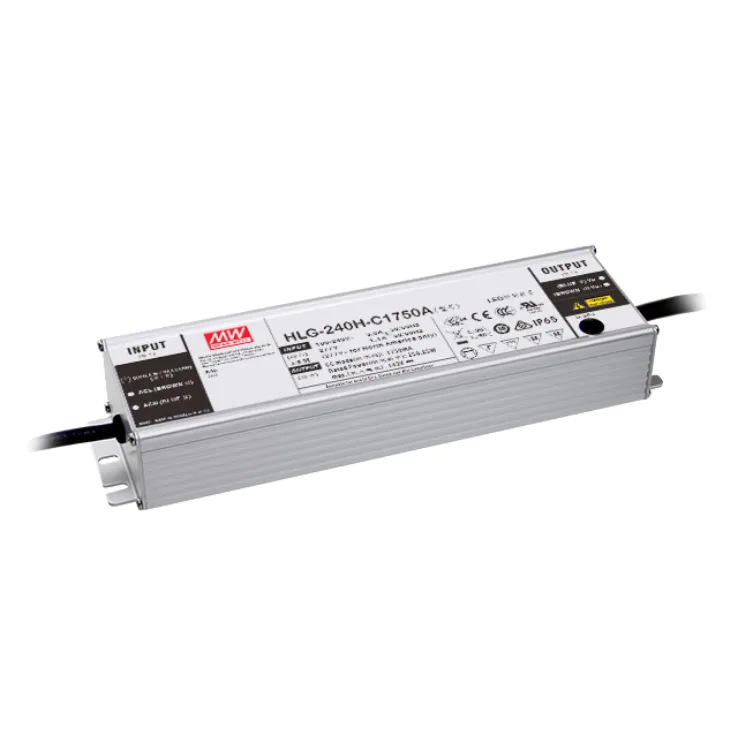

HLG-240H-CA Series Non-dim Constant Current LED Drivers 250W

Models:	HLG-240H-C700A HLG-240H-C1050A HLG-240H-C1400A HLG-240H-C1750A HLG-240H-C2100A
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

HLG-240H-CA Series Features:

Constant current design

Metal housing with class I design

Protections: Short circuit / Over voltage / Over temperature

Other features:

IP67 / IP65 design for indoor or outdoor installations
Function options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming
IP67 design for indoor or outdoor installations
Typical lifetime >62000 hours
7 years warranty

Spec	HLG-240H-C700A	HLG-240H-C1050A	HLG-240H-C1400A	HLG-240H-C1750A	HLG-240H-C2100A
Wattage	250	250	250	250	250
Input Voltage	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC
Output Current	700mA	1050mA	1400mA	1750mA	2100mA
Output Voltage Options	Single	Single	Single	Single	Single
Dimensions	244.2x 68x 38.8	244.2x 68x 38.8	244.2x 68x 38.8	244.2x 68x 38.8	244.2x 68x 38.8
Working Temperature	-40~+90°C (Refer to b_x001C_Derating Curveb_x001D_)
Safety Standards	UL8750 (typeb
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
