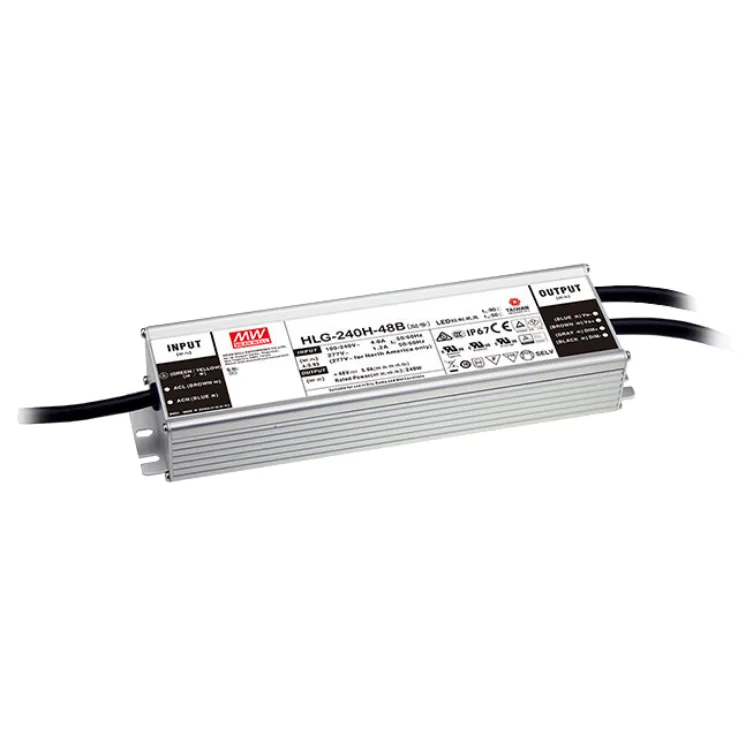

HLG-240H-B Series Non-dim Constant Current LED Drivers 192–240W

Download Datasheet
Models:
  • HLG-240H-12B
  • HLG-240H-15B
  • HLG-240H-20B
  • HLG-240H-24B
  • HLG-240H-30B
  • HLG-240H-36B
  • HLG-240H-42B
  • HLG-240H-48B
  • HLG-240H-54B
Manufacturer: MEAN WELL
Type: Constant Current LED Drivers

HLG-240H-B Series Features:

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)

IP67 design for indoor or outdoor installations

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 95%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Multiple models for choice:
  • Built-in active PFC function, PF>0.9 for 60% of load or higher
  • 7 years warranty
Wattage 192 240 240 240 240 240 240 240 240
Input Voltage 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC
Output Voltage 12 15 20 24 30 36 42 48 54
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage
Dimensions 244.2 x 68 x 38.8 244.2 x 68 x 38.8 244.2 x 68 x 38.8 244.2 x 68 x 38.8 244.2 x 68 x 38.8 244.2 x 68 x 38.8 244.2 x 68 x 38.8 244.2 x 68 x 38.8 244.2 x 68 x 38.8
Working Temperature -40~+70°C (Refer to "Derating Curve")
Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1
EMC Standards EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
