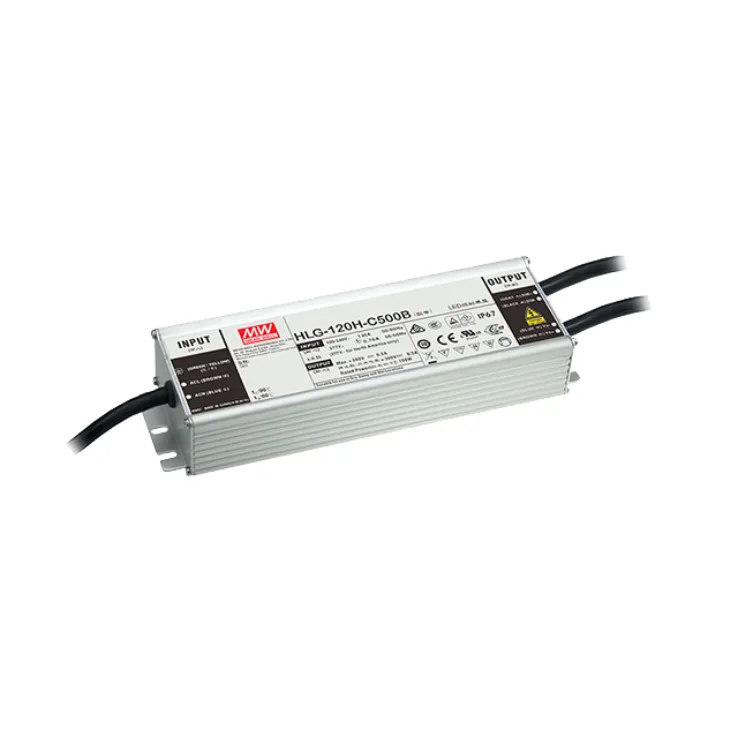

HLG-120H-CB Series 0-10V Dimmable Constant Current LED Drivers 150W

Models:	HLG-120H-C350B HLG-120H-C500B HLG-120H-C700B HLG-120H-C1050B HLG-120H-C1400B
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

HLG-120H-CB Series Features:

Constant current design

Three in one dimming function (1~10Vdc or PWM signal or resistance)

Protections: Short circuit/ Over voltage/ Over temperature

Spec	HLG-120H-C350B	HLG-120H-C500B	HLG-120H-C700B	HLG-120H-C1050B	HLG-120H-C1400B
Wattage	150	150	150	150	150
Input Voltage	90 ~ 305VAC, 127~431VDC	90 ~ 305VAC, 127~431VDC	90 ~ 305VAC, 127~431VDC	90 ~ 305VAC, 127~431VDC	90 ~ 305VAC, 127~431VDC
Output Current	350mA	500mA	700mA	1050mA	1400mA
Output Voltage Options	Single	Single	Single	Single	Single
Dimensions	220x 68x 38.8	220x 68x 38.8	220x 68x 38.8	220x 68x 38.8	220x 68x 38.8
Working Temperature	-40~+70°C
Safety Standards	UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13, EN62384 independent, IP65 approved
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (b '50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A
