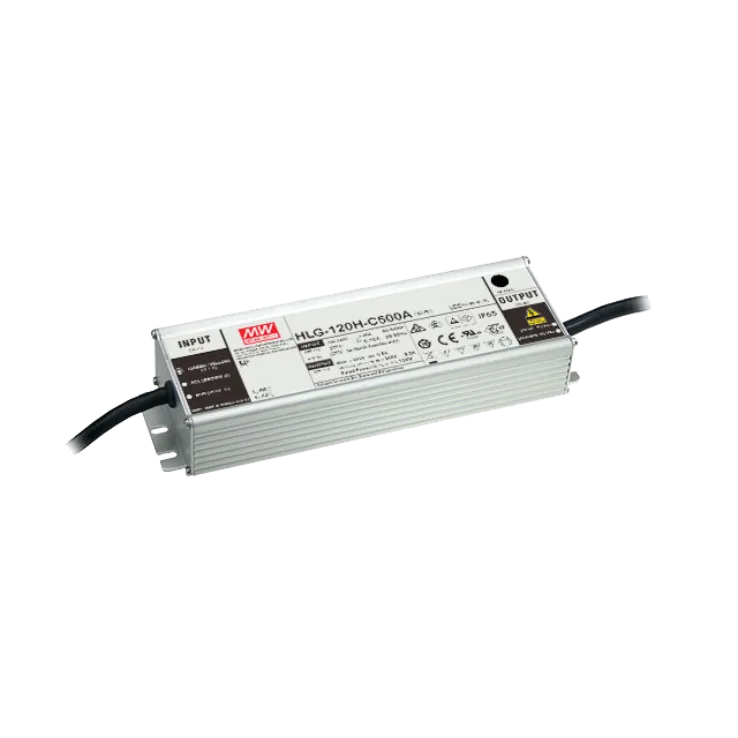

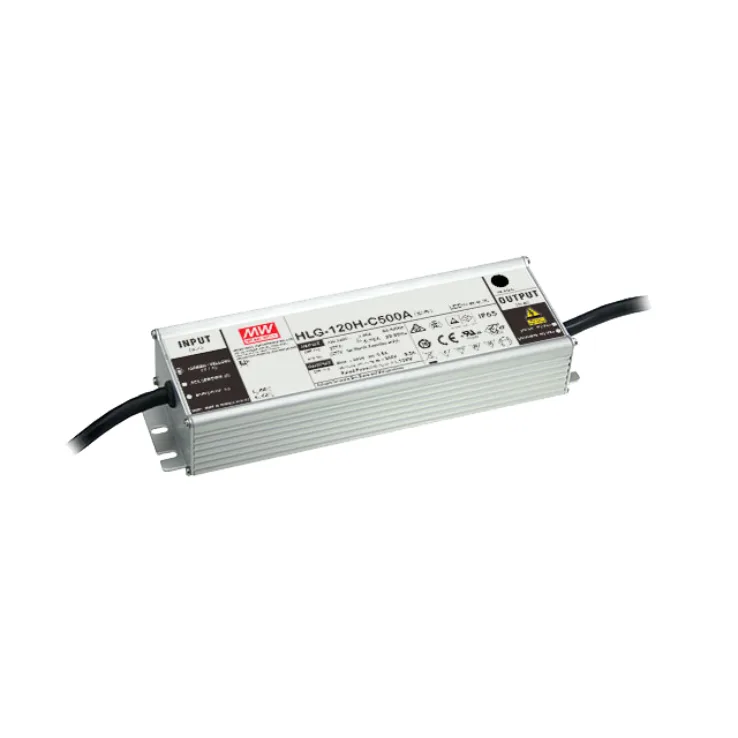

HLG-120H-CA Series Non-dim Constant Current LED Drivers 150W

Download Datasheet
Models:
  • HLG-120H-C350A
  • HLG-120H-C500A
  • HLG-120H-C700A
  • HLG-120H-C1050A
  • HLG-120H-C1400A
Manufacturer: Mean Well
Type: Constant Current LED Drivers

HLG-120H-CA Series Features:

Constant current design

Three in one dimming function (1~10Vdc or PWM signal or resistance)

Protections: Short circuit/ Over voltage/ Over temperature

  • Universal AC input/ Full range (up to 305VAC)
  • Built-in active PFC function
  • High efficiency up to 94%
  • Cooling by free air convection
  • Output current adjustable through output cable
  • IP67 design for indoor or outdoor installations
  • Suitable for dry/ damp/ wet locations
  • 7 years warranty
Wattage 150 150 150 150 150
Input Voltage 90 ~ 305VAC, 127~431VDC 90 ~ 305VAC, 127~431VDC 90 ~ 305VAC, 127~431VDC 90 ~ 305VAC, 127~431VDC 90 ~ 305VAC, 127~431VDC
Output Current 350mA 500mA 700mA 1050mA 1400mA
Output Voltage Options Single Single Single Single Single
Dimensions 220x 68x 38.8 220x 68x 38.8 220x 68x 38.8 220x 68x 38.8 220x 68x 38.8
Working Temperature -40~+70°C
Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13, EN62384 independent, IP65 approved
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (b '50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A
