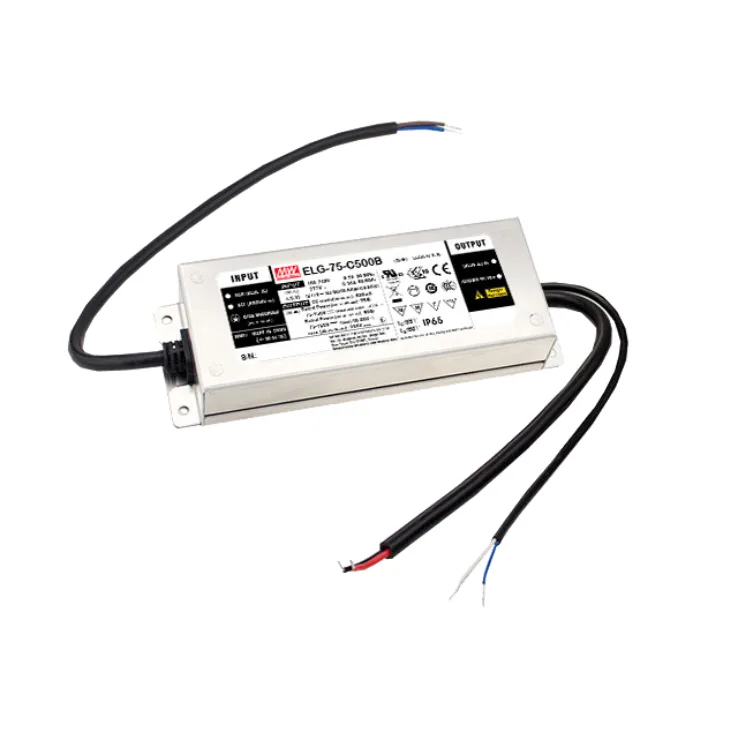

ELG-75-C-B-3Y Series Constant Current LED Drivers 59.85–75W

Download Datasheet
Models:
  • ELG-75-C350B-3Y
  • ELG-75-C500B-3Y
  • ELG-75-C700B-3Y
  • ELG-75-C1050B-3Y
  • ELG-75-C1400B-3Y
Manufacturer: MEAN WELL
Type: Constant Current LED Drivers

ELG-75-C-B-3Y Series Features:

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA.

Features:

  • Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • No load/Standby power consumption <0.5W
  • IP67/IP65 rating for indoor or outside installations
  • Function options: output adjustable via potentiometer;
  • 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
  • Typical lifetime >50000 hours
  • 5 years warranty
Wattage 74.9 75 74.9 59.85 60.2
Input Voltage 100~305VAC 100~305VAC 100~305VAC 100~305VAC 100~305VAC
Output Current 350mA 500mA 700mA 1050mA 1400mA
Output Voltage 224V 158V 114V 78V 61V
Dimensions 180*63*35.5mm (L*W*H) 180*63*35.5mm (L*W*H) 180*63*35.5mm (L*W*H) 180*63*35.5mm (L*W*H) 180*63*35.5mm (L*W*H)
Working Temperature Tcase=-40~+85°C
Safety Standards UL8750(type"HL"), CSA C22.2 No.250.13-12; IEC/EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 independant, EN62384; EAC TP TC 004; BIS IS15885 (for 700A/1050A only); IP65 or IP67; GB19510.14, KC61347-1, KC61347-2-13 approved UL8750(type"HL"), CSA C22.2 No.250.13-12; IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-12 independant, EN62384; EAC TP TC 004; BIS IS15885 (for 12B/24B/36A/42A/48A only); IP65 or IP67; GB19510.1, GB19510.14; KC61347-1, KC61347-2-13 approved
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (@load ≥ 50%); EN61000-3-3; GB17743, GB17625.1; EAC TP TC 020; KC KN15, KN61547
