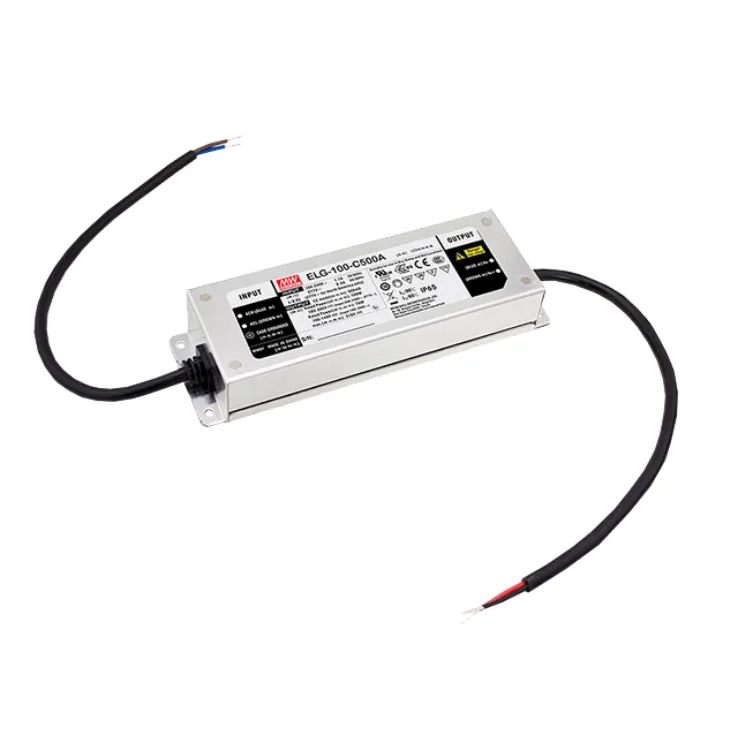

ELG-100-C-B-3Y Series 0-10V Dimmable Constant Current LED Drivers 100W

Download Datasheet
Models:
  • ELG-100-C350B-3Y
  • ELG-100-C500B-3Y
  • ELG-100-C700B-3Y
  • ELG-100-C1050B-3Y
  • ELG-100-C1400B-3Y
Manufacturer: Mean Well
Type: Constant Current LED Drivers

ELG-100-C-B-3Y Series Features:

Constant current mode output

Typical lifetime>50000 hours

Protections: Short circuit/ Over Voltage/ Over temperature

Other features:

  • Built-in active PFC function
  • No load power consumption <0.5W
  • IP67 / IP65 rated design for indoor or outdoor installations
  • Metal housing design
  • 3 in 1 dimming
  • 5 years warranty
Wattage 100 100 100 100 100
Input Voltage 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC
Output Current 350mA 500mA 700mA 1050mA 1400mA
Output Voltage Options Single Single Single Single Single
DC output adjustment 175-350mA (A type only) 250-500mA (A type only) 350-700mA (A type only) 525-1050mA (A type only) 700-1400mA (A type only)
Dimensions 199x 63x 35.5 199x 63x 35.5 199x 63x 35.5 199x 63x 35.5 199x 63x 35.5
Working Temperature -40~+90°C (Refer to "OUTPUT LOAD vs TEMPERATURE")
Safety Standards UL8750 (typeb
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
