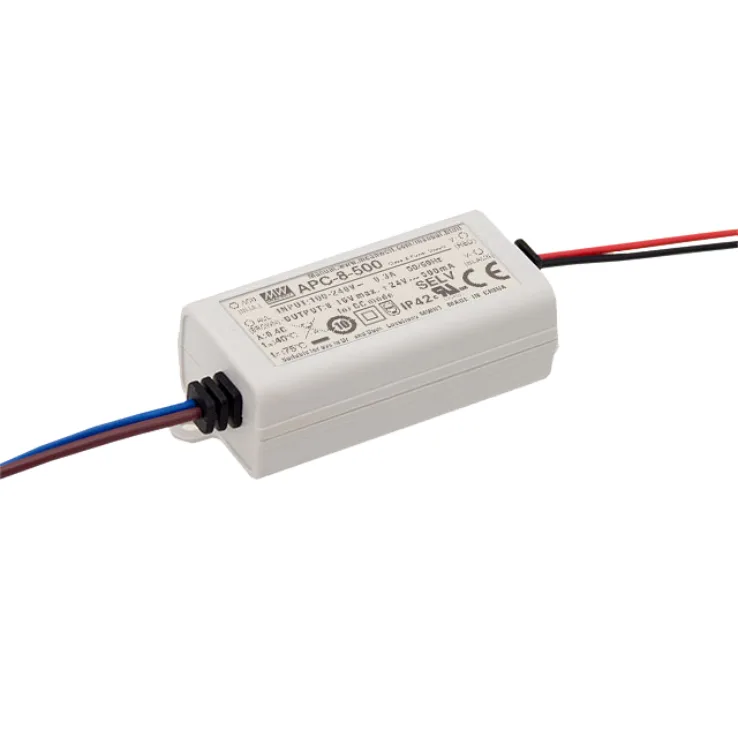

APC-8 Series Non-dim Constant Current LED Drivers 7.7–8.05W

Download Datasheet
Models:
  • APC-8-250
  • APC-8-350
  • APC-8-500
  • APC-8-700
Manufacturer: MEAN WELL
Type: Constant Current LED Drivers

APC-8 Series Features:

Constant Current

Fully isolated plastic case

Protections: Short circuit

Other features:

  • Universal AC input / Full Range
  • Small and compact size
  • No load power consumption <0.5W
  • IP30 design
  • Class II power unit, no FG
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
Wattage 8 8.05 8 7.7
Input Voltage 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC
Output Current 250mA 350mA 500mA 700mA
Output Voltage Options Single Single Single Single
Dimensions 60 x 30 x 22 60 x 30 x 22 60 x 30 x 22 60 x 30 x 22
Working Temperature -30~+70°C (Refer to "Derating Curve")
Safety Standards Design refer to UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13
EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A
