MEAN WELL

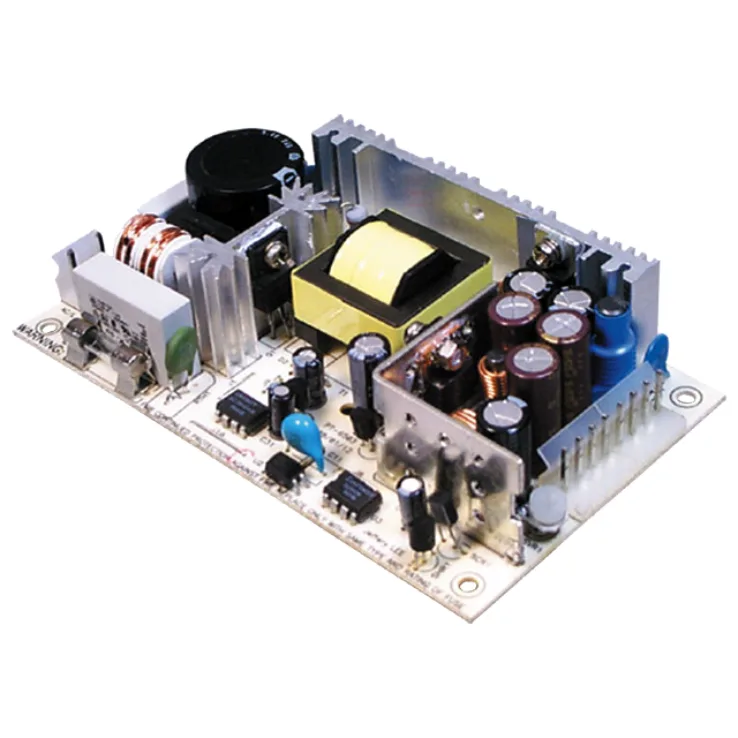

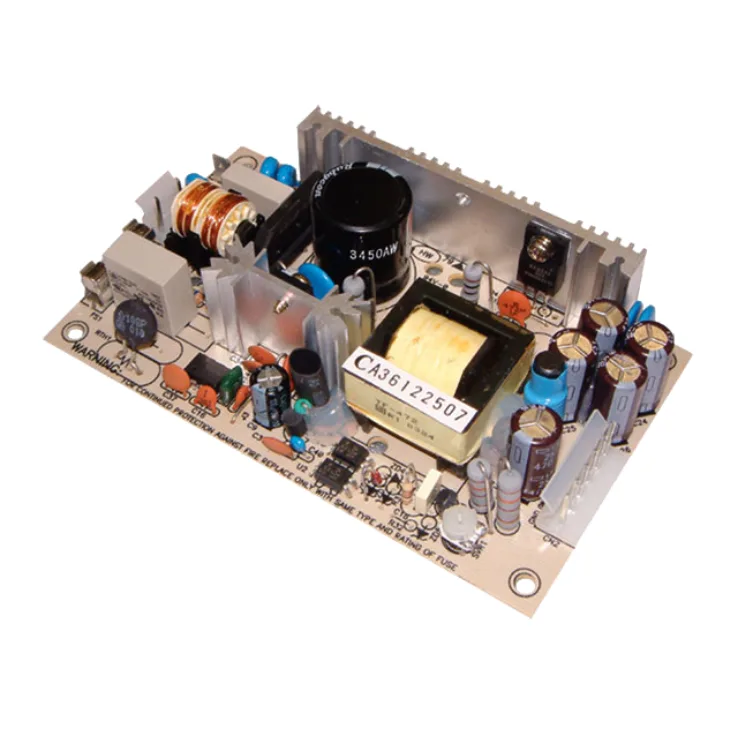

PT-45 Series Open Frame Power Supplies 45W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
PT-45 Series Features:
Low leakage current <0.5mA
Protections: Short circuit / Overload / Over voltage
Other features:
- Universal AC input / Full range
- Cooling by free air convection
- Fixed switching frequency @65kHz
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
| Wattage | 45 | 45 | 45 | 45 |
|---|---|---|---|---|
| Input Voltage | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC |
| Output Current | 0.4~5.0, 0.2~2.5, 0.0~0.5 | 0.4~5.0, 0.2~2.5, 0.0~0.5 | 0.4~5.0, 0.2~2.3, 0.0~0.5 | 0.0~5.0, 0.2~7.0, 0.0~1.2 |
| Output Voltage | 5, 12, -5 | 5, 12, -12 | 5, 15, -15 | 3.3, 5, 12 |
| Output Voltage Options | Triple | Triple | Triple | Triple |
| DC output adjustment | -5%~+10% rated output voltage | -5%~+10% rated output voltage | -5%~+10% rated output voltage | 3.3V: +/- 10% rated output voltage |
| Dimensions | 127 x 76 x 28 | 127 x 76 x 28 | 127 x 76 x 28 | 127 x 76 x 28 |
| Working Temperature | -10~+60°C (refer to output derating curve) | |||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | |||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11 | |||
