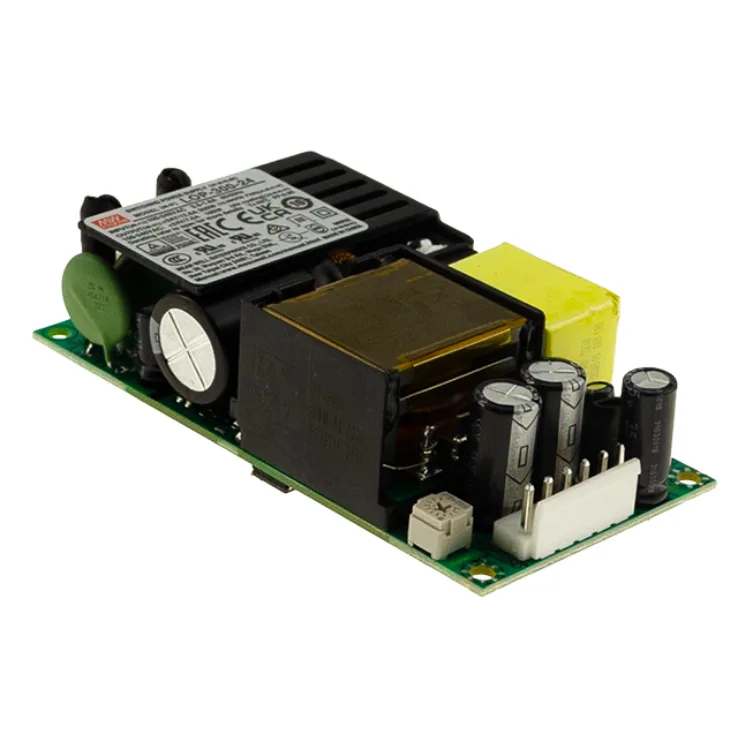

LOP-300 Series Open Frame Power Supplies 300W

Models:	LOP-300-12 LOP-300-15 LOP-300-18 LOP-300-24 LOP-300-27 LOP-300-30 LOP-300-36 LOP-300-48 LOP-300-54
Manufacturer:	MEAN WELL
Type:	Open Frame Power Supplies

LOP-300 Series Features:

LOP-300 is a 300W highly reliable green PCB type low profile power supply with a high power density on the 4" by 2" footprint

Features:
MEAN WELL Patent Number: ZL 202223277512.1
4" x 2" compact size with low profile (25.4mm)
80~264Vac input with PFC, No load power consumption<0.5W
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
150% peak load @3s
180W convection, 300W with FAN 10.98CFM forced-cooled
Suitable for Class I or Class II installations
Over voltage category III (OVC III)
-40 ~ +80C wide range operation temperature
High Efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over temperature
Extremely low leakage current
Operating altitude up to 5000 meters
Built-in 12V/0.5A for external FAN
3 years warranty

Wattage

300

Input Voltage

80 ~ 264VAC 113 ~ 370VDC

Output Current

25A

20A

16.7A

12.5A

11.1A

10A

8.3A

6.3A

8.3A

Output Voltage

11.4~12.6V

14.3~15.8V

17.1~18.9V

22.8~25.2V

25.6~28.4V

28.5 ~31.5V

34.2 ~37.8V

45.6 ~50.4V

52 ~58V

Dimensions

101.6*50.8* 25.4mm (L*W*H)

Working Temperature

-40 ~ +80℃ (Refer to "Derating Curve")

Safety Standards

CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved

EMC Standards

BS EN/EN55032(CISPR32) BS EN/EN55011(CISPR11) BS EN/EN55014(CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3
