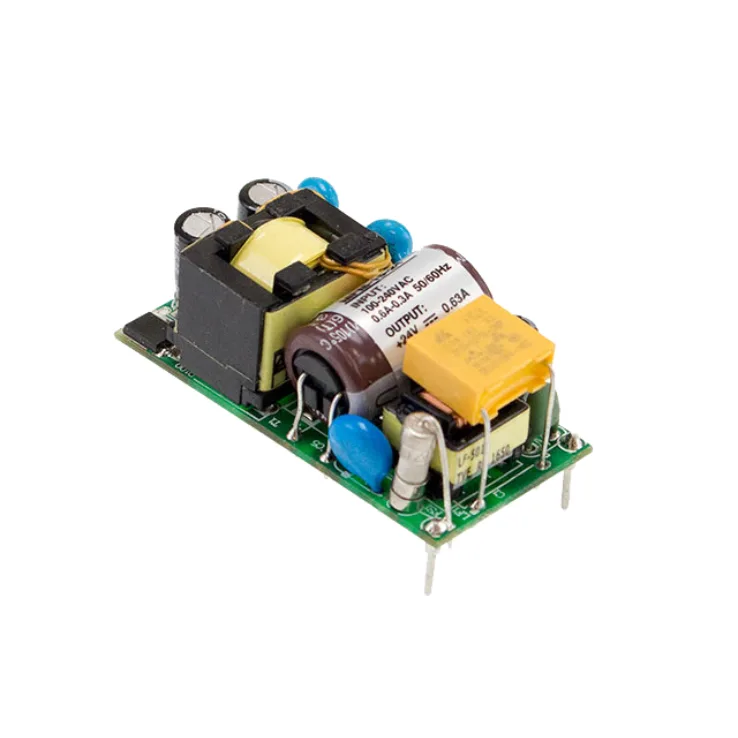

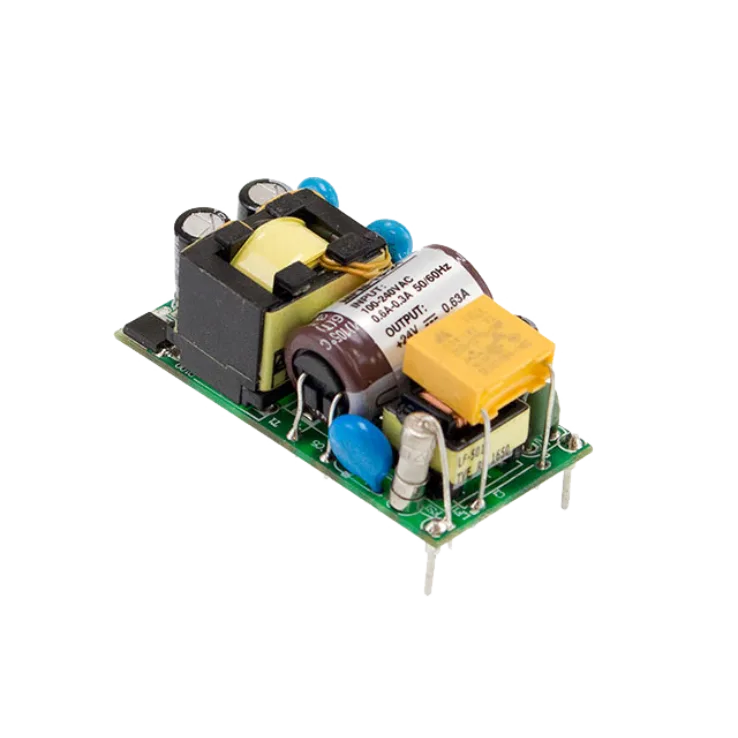

MFM-15 Series Open Frame Power Supplies 11.6–15.1W

Download Datasheet
Models:
  • MFM-15-3.3
  • MFM-15-5
  • MFM-15-12
  • MFM-15-15
  • MFM-15-24
Manufacturer: Mean Well
Type: Open Frame Power Supplies

MFM-15 Series Features:

MFM-15 is a 15W high density and small size (49*23.8*23mm) AC/DC on board type medical power supply series.

Features:

  • 1.93"x0.94" compact size
  • Medical safety approved (2c MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN606601-1
  • Suitable for BF application with appropriate system consideration
  • No load power consumption <0.1W
  • Extremely low leakage current
  • Wide operating temp.range -35~+85°C
  • EMI class B for class II configuration
  • Protections: short circuit/overload/ over voltage/over temperature
  • No minimum load required
  • 3 years warranty
Wattage 11.6 15 15 15 15.1
Input Voltage 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC
Output Current 3.5A 3A 1.25A 1A 0.63A
Output Voltage 3.3V 5V 12V 15V 24V
Dimensions 49*23.8*23mm 49*23.8*23mm 49*23.8*23mm 49*23.8*23mm 49*23.8*23mm
Working Temperature -35~+85°C
Safety Standards IEC60601-1, EN60601-1, IEC60335-1, EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved
