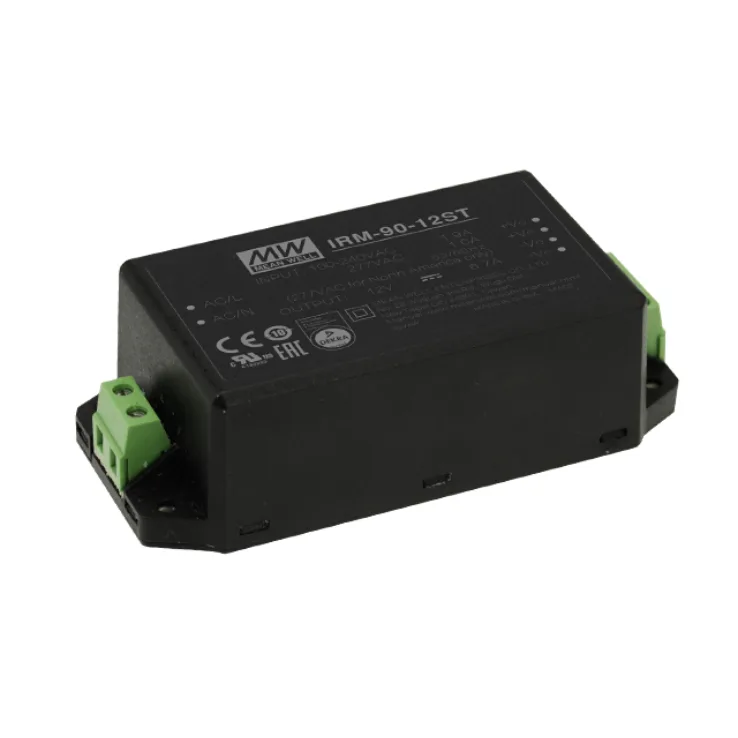

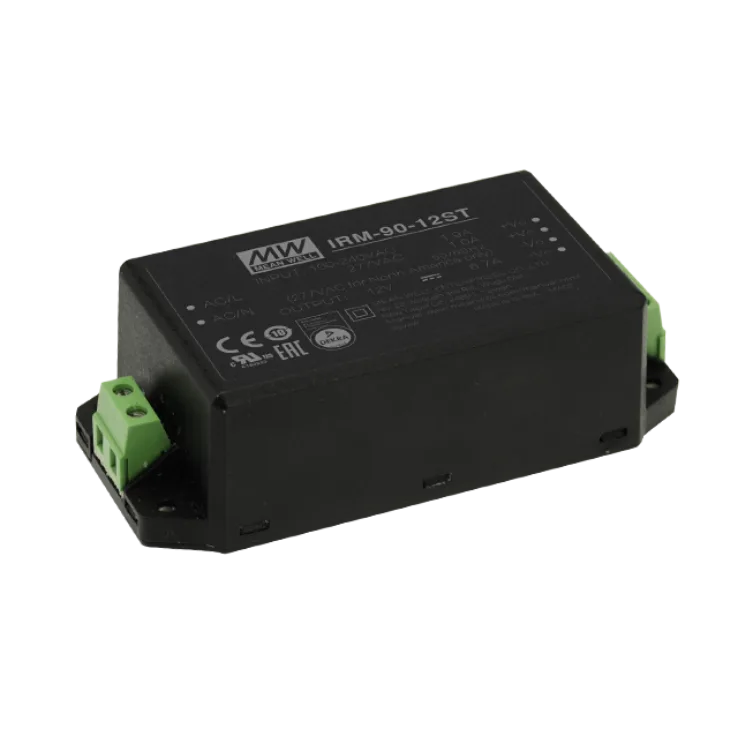

IRM-90-ST Series Open Frame Power Supplies 90W

Download Datasheet
Models:
  • IRM-90-12ST
  • IRM-90-15ST
  • IRM-90-24ST
  • IRM-90-48ST
Manufacturer: Mean Well
Type: Open Frame Power Supplies

IRM-90-ST Series Features:

3.43"x2.05" compact size

PCB. chassis or screw terminal mounting version

Other features:

  • Universal input 80-305VAC
  • EM I EN55032 Class B without additional components
  • Wide operating temp. rage -30~80°C
  • Protections: Short circuit/ Overload/ Over voltage
  • Over voltage category III
  • 3 years warranty
Wattage 90 90 90 90
Input Voltage 80-305VAC,113-431VDC 90-305VAC,127-431VDC 90-305VAC,127-431VDC 90-305VAC,127-431VDC
Output Current 6.7A 5.67A 3.75A 1.88A
Output Voltage 12 15 24 48
Output Voltage Options Single Single Single Single
Dimensions PCB: 87 x 52 x 29, Screw terminal: 109 x 52 x 33 PCB: 87 x 52 x 29, Screw terminal: 109 x 52 x 33 PCB: 87 x 52 x 29, Screw terminal: 109 x 52 x 33 PCB: 87 x 52 x 29, Screw terminal: 109 x 52 x 33
Working Temperature -30 - +80°C
Safety Standards IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004 approved; Design refer to EN60335-1 (by request)
EMC Standards EN55032 (CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
