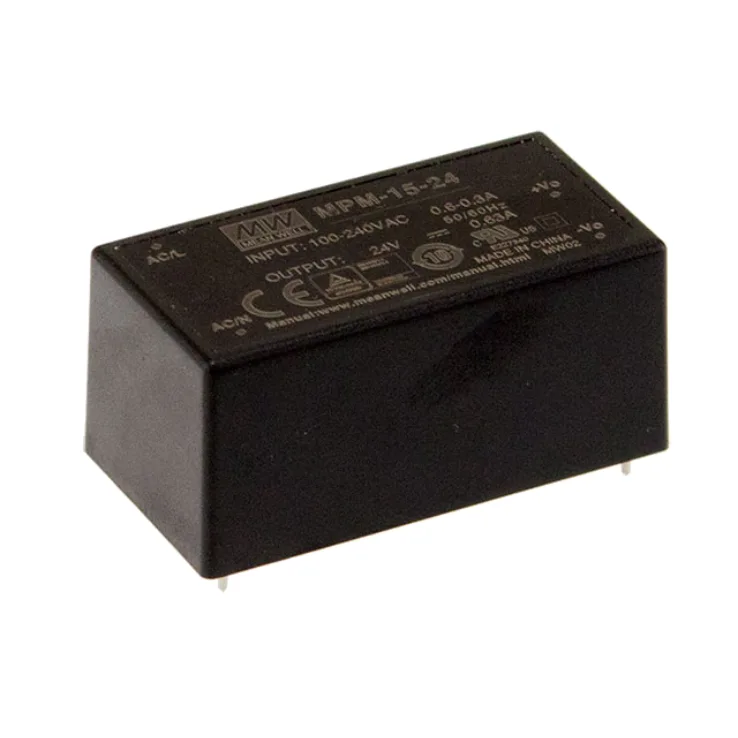

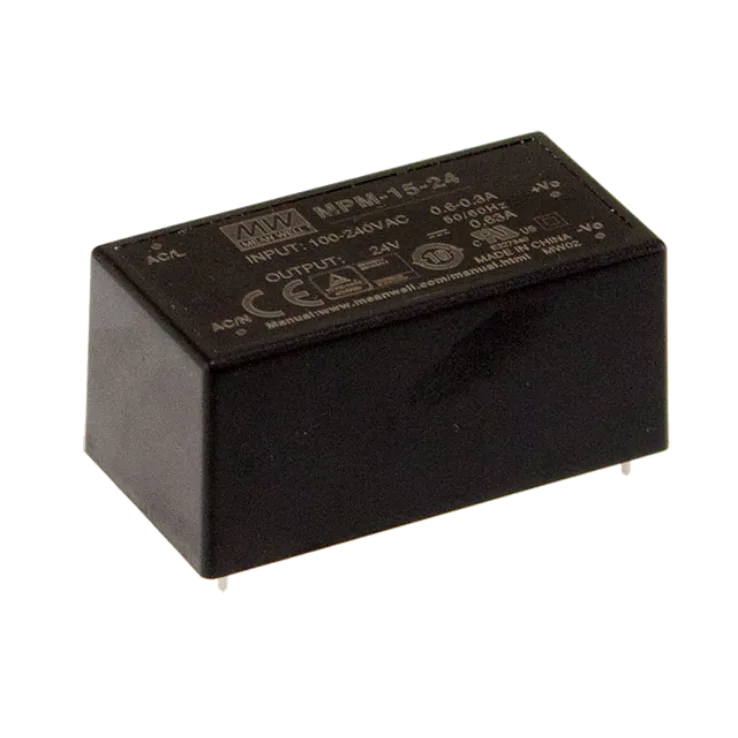

MPM-15 Series Open Frame Power Supplies 11.6–15.1W

Download Datasheet
Models:
  • MPM-15-3.3
  • MPM-15-5
  • MPM-15-12
  • MPM-15-15
  • MPM-15-24
Manufacturer: Mean Well
Type: Open Frame Power Supplies

MPM-15 Series Features:

MPM-15 is a 15W high density and small size (52.4*27.2*24mm) AC/DC module type medical power supply series offered in pin type.

Features:

  • 2.06"x1.07" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • No load power consumption <0.1W
  • Extremely low leakage current
  • Wide operating temp. range -40~+85°C
  • EMI class B for class II configuration
  • Protections: short circuit/ overload/ over voltage/ over temperature
  • No minimum load required
  • 3 years warranty
Wattage 11.6 15 15 15 15.1
Input Voltage 80~264VAC 80 ~264VAC 80 ~264VAC 80~264VAC 80~264VAC
Output Current 3.5A 3A 1.25A 1A 0.63A
Output Voltage 3.3V 5V 12V 15V 24V
Dimensions 52.4*27.2*24mm 52.4*27.2*24mm 52.4*27.2*24mm 52.4*27.2*24mm 52.4*27.2*24mm
Working Temperature -40~+85°C
Safety Standards IEC60601-1, EN60601-1, IEC60335-1, EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1version),CAN/CDA-C22 3rd edition approved
