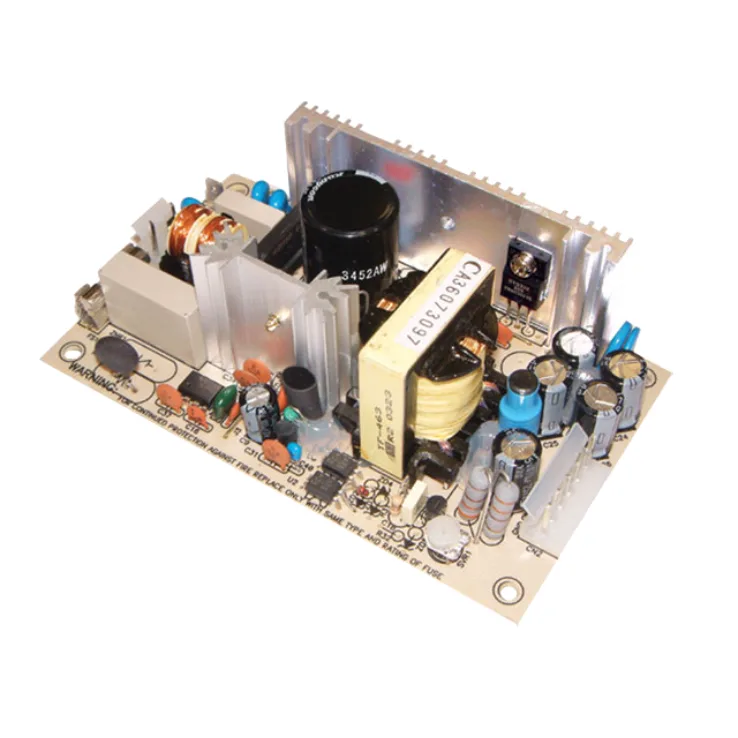

Mean Well PD-65 Series Open Frame Power Supplies 45–65W

Download Datasheet
Models:
  • PD-65B
  • PD-65A
Manufacturer: Mean Well
Type: Open Frame Power Supplies

PD-65 Series Features:

Fixed switching frequency at 65kHz

Protections: Short circuit / Overload / Over voltage

Other features:

  • Universal AC input / Full range
  • Cooling by free air convection
  • Low leakage current <0.5mA
  • Low cost, high reliability
  • 100% full load burn-in test
  • 2 years warranty
Wattage 65 45
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 0.4~6.0, 0.2~2.6 0.4~7.0, 0.2~3.2
Output Voltage 5, 24 5, 12
Output Voltage Options Dual Dual
DC output adjustment -5%~+10% rated output voltage -5%~+10% rated output voltage
Dimensions 127 x 76 x 42 127 x 76 x 42
Working Temperature -30~+60B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11
