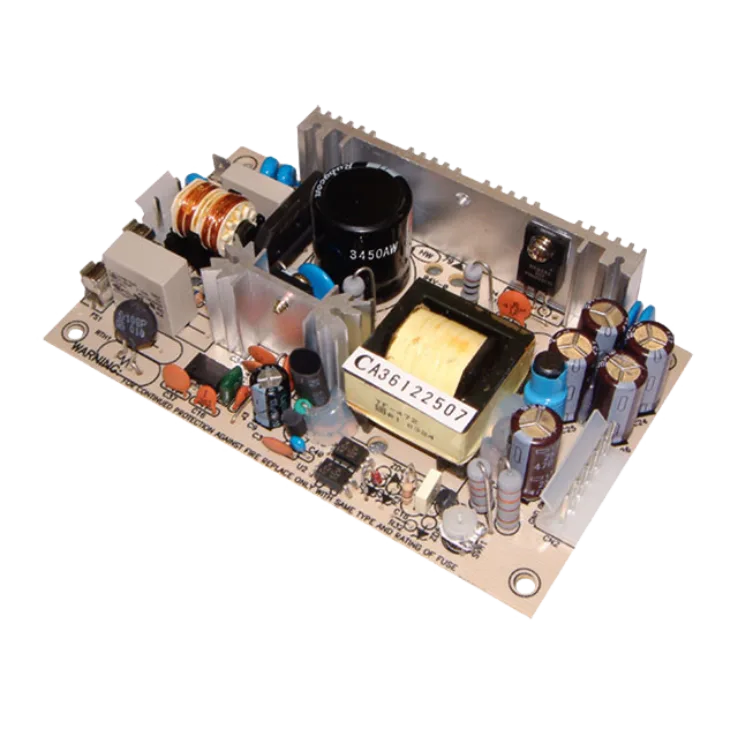

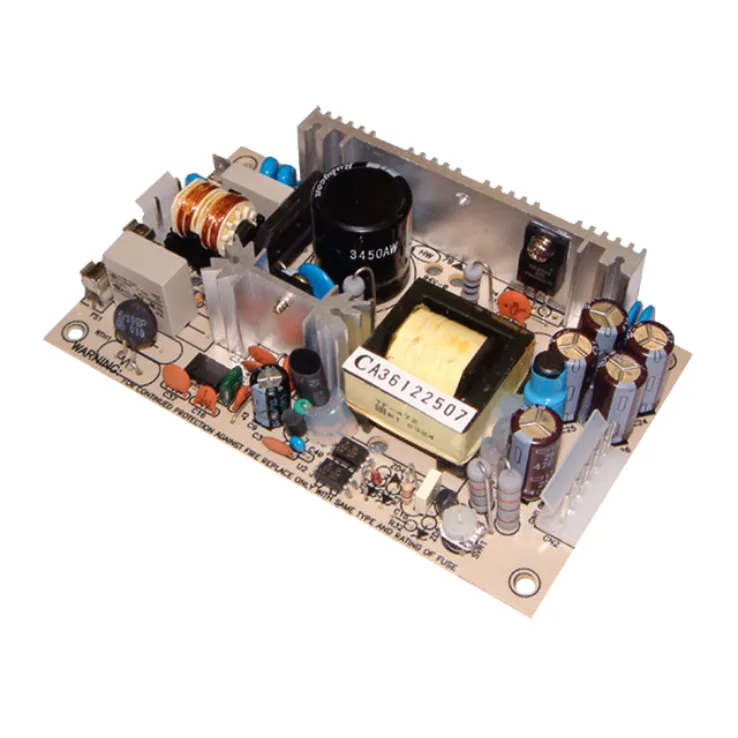

PD-45 Series Open Frame Power Supplies 45W

Download Datasheet
Models:
  • PD-45B
  • PD-45A
Manufacturer: Mean Well
Type: Open Frame Power Supplies

PD-45 Series Features:

Low leakage current <0.5mA

Protections: Short circuit / Overload / Over voltage

Other features:

  • Universal AC input / Full range
  • Cooling by free air convection
  • Fixed switching frequency at 65kHz
  • 100% full load burn-in test
  • Low cost, high reliability
  • 2 years warranty
Wattage 45 45
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 0.4~5.0, 0.2~1.8 0.4~5.0, 0.2~2.5
Output Voltage 5, 24 5, 12
Output Voltage Options Dual Dual
DC output adjustment -5%~+10% rated output voltage -5%~+10% rated output voltage
Dimensions 127 x 76 x 28 127 x 76 x 28
Working Temperature -30~+60°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11
