MEAN WELL

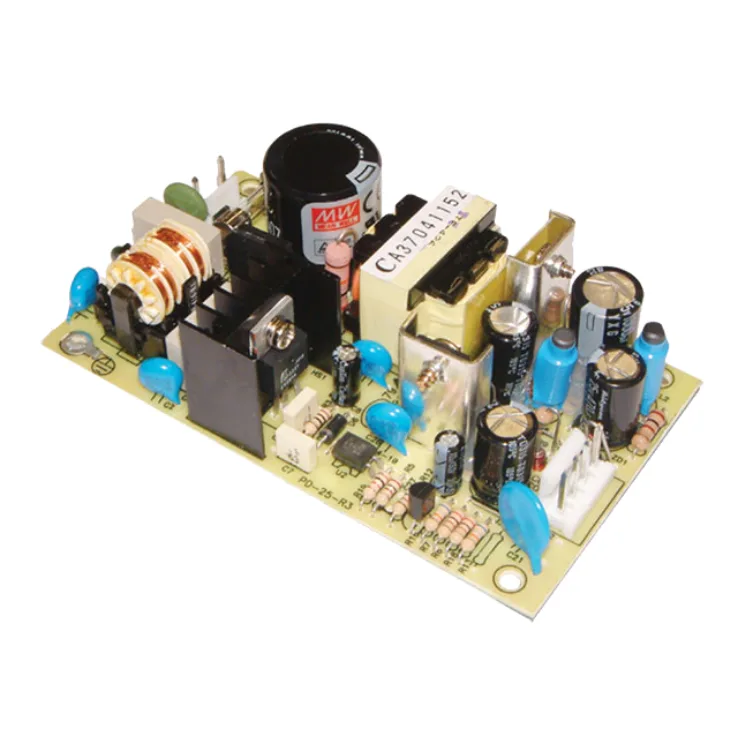

PD-25 Series Open Frame Power Supplies 25W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
PD-25 Series Features:
Low leakage current <0.5mA
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Other features:
- Universal AC input/ Full range
- Cooling by free air convection
- fixed switching frequency at 67 kHz
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
| Wattage | 25 | 25 | 25 | 25 | 25 | 25 |
|---|---|---|---|---|---|---|
| Input Voltage | 85-264VAC, 120-370VDC | 85-264VAC, 120-370VDC | 85-264VAC, 120-370VDC | 85-264VAC, 120-370VDC | 85-264VAC, 120-370VDC | 85-264VAC, 120-370VDC |
| Output Current | 0.2~2.5, 0.1~1.5 | 0.2~2.0, 0.1~1.0 | 0.2~5.0, 0.1~4.0 | 0.1~3.0, 0.1~2.5 | 0.1~1.2, 0.1~1.2 | 0.1~1.0, 0.1~1.0 |
| Output Voltage | 15, 12 | 5, 24 | 3.3, 5 | 5, -5 | 12, -12 | 15, -15 |
| Output Voltage Options | Dual | Dual | Dual | Dual | Dual | Dual |
| DC output adjustment | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | 107 x 61 x 28 | 107 x 61 x 28 | 107 x 61 x 28 | 107 x 61 x 28 | 107 x 61 x 28 | 107 x 61 x 28 |
| Working Temperature | -30~+50°C (refer to output derating curve) | |||||
| Safety Standards | UL60950-1 CB approval by TUV | |||||
| EMC Standards | EN55022 class B, EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11 | |||||
