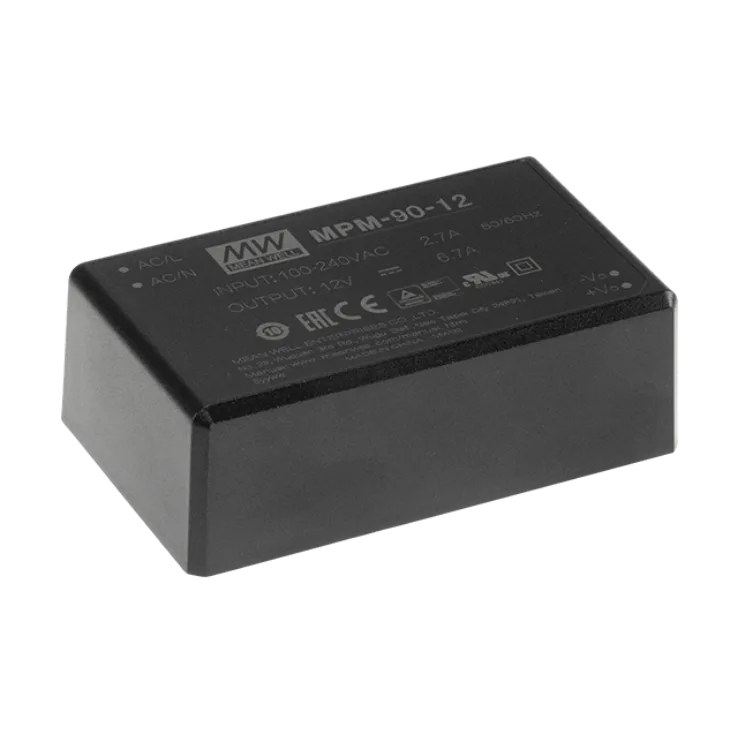

MPM-90 Series Open Frame Power Supplies 90W

Download Datasheet
Models:
  • MPM-90-12
  • MPM-90-15
  • MPM-90-24
  • MPM-90-48
Manufacturer: Mean Well
Type: Open Frame Power Supplies

MPM-90 Series Features:

3.43" x 2.05" compact size

PCB chassis or screw terminal mounting version

Other features:

  • Medical safety approved (2 x MOPP) to according ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • No load power consumption<0.1W
  • Wide operating temp. rage -30~80°C
  • Extremely low leakage current
  • EMI Class B without additional components
  • Protections: Short circuit / Overload / Over voltage
  • Isolation Class II
  • 3 years warranty
Wattage 90 90 90 90
Input Voltage 80-264VAC,113-370VDC 80-264VAC,113-370VDC 80-264VAC,113-370VDC 80-264VAC,113-370VDC
Output Current 6.7A 5.67A 4.13A 2.07A
Output Voltage 12 15 24 48
Output Voltage Options Single Single Single Single
Dimensions PCB: 87 x 52 x 29.5, Screw terminal: 109 x 52 x 33.5 PCB: 87 x 52 x 29.5, Screw terminal: 109 x 52 x 33.5 PCB: 87 x 52 x 29.5, Screw terminal: 109 x 52 x 33.5 PCB: 87 x 52 x 29.5, Screw terminal: 109 x 52 x 33.5
Working Temperature -30 - +80°C
Safety Standards IEC60601-1, EN60601-1,UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; EAC TP TC 004,Design refer to EN60335-1(by request), Primary-Secondary: 2xMOPP, I/P-O/P:4KVAC, I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Standards EN55011 (CISPR11), EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
