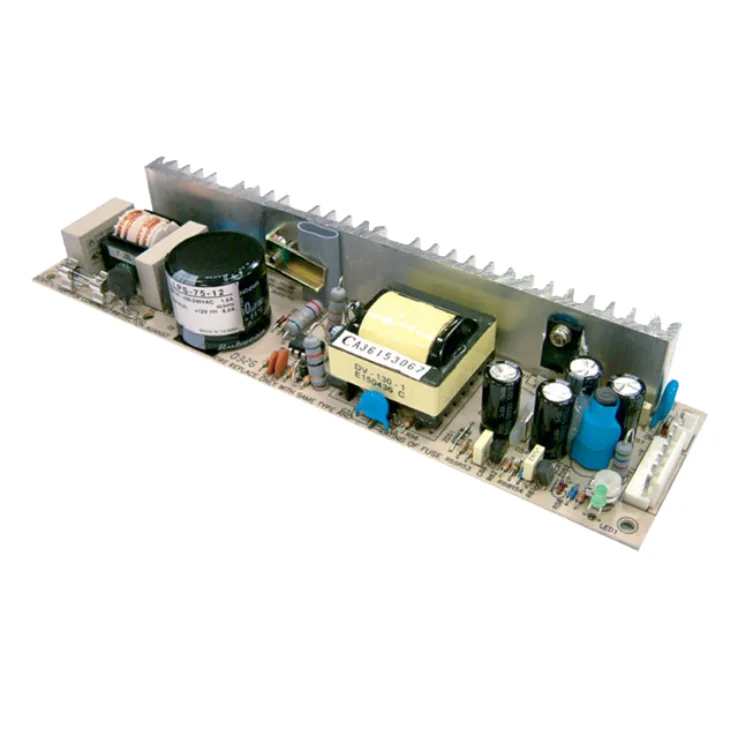

LPS-75 Series Open Frame Power Supplies 75W

LPS-75 Series Features:

100% full load burn-in test

Protections: Short circuit / Over load / Over Voltage

Other features:

Spec	LPS-75-3.3	LPS-75-5	LPS-75-12	LPS-75-15	LPS-75-24	LPS-75-48
Wattage	75	75	75	75	75	75
Input Voltage	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC
Output Current	0~15	0~15	0~6.2	0~5.0	0~3.2	0~1.56
Output Voltage	3.3	5	12	15	24	48
Output Voltage Options	Single	Single	Single	Single	Single	Single
DC output adjustment	+/- 10% rated output voltage	+/- 10% rated output voltage	+/- 10% rated output voltage	+/- 10% rated output voltage	+/- 10% rated output voltage	+/- 10% rated output voltage
Dimensions	222 x 55 x 30	222 x 55 x 30	222 x 55 x 30	222 x 55 x 30	222 x 55 x 30	222 x 55 x 30
Working Temperature	-30~+70°C
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level
