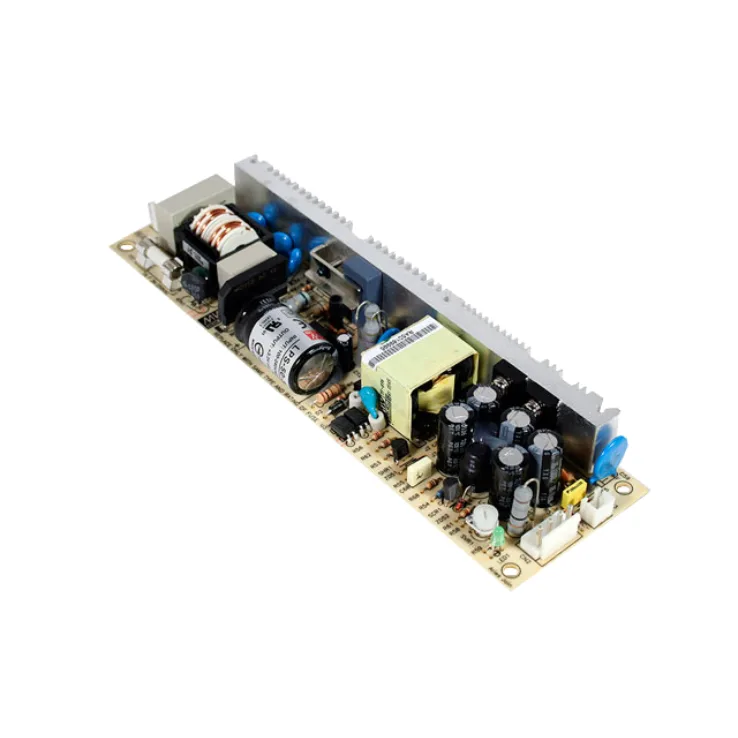

LPS-50 Series Open Frame Power Supplies 50W

LPS-50 Series Features:

100% full load burn-in test

Protections: Short circuit / Over load / Over Voltage

Other features:

Spec	LPS-50-3.3	LPS-50-5	LPS-50-12	LPS-50-15	LPS-50-24	LPS-50-48
Wattage	50	50	50	50	50	50
Input Voltage	90~264VAC, 127~370VDC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC
Output Current	0~10.0	0~10	0~4.2	0~3.4	0~2.1	0~1.1
Output Voltage	3.3	5	12	15	24	48
Output Voltage Options	Single	Single	Single	Single	Single	Single
DC output adjustment	+/- 10% rated output voltage	+/- 10% rated output voltage	+/- 10% rated output voltage	+/- 10% rated output voltage	+/- 10% rated output voltage	+/- 10% rated output voltage
Dimensions	195 x 55 x 23	195 x 55 x 23	195 x 55 x 23	195 x 55 x 23	195 x 55 x 23	195 x 55 x 23
Working Temperature	-20~+70°C
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11	EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level
