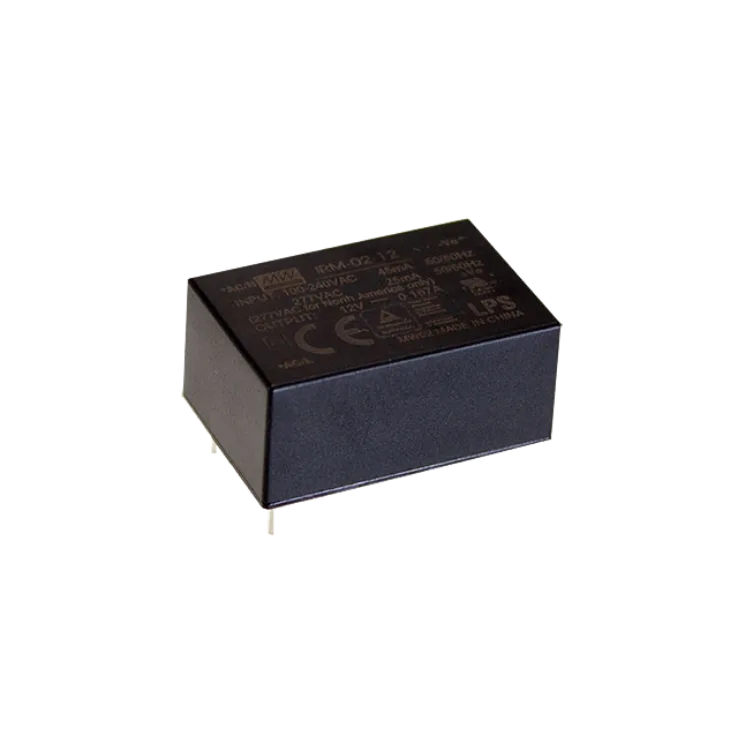

Mean Well IRM-02 Series Open Frame Power Supplies 2W

Download Datasheet
Models:
  • IRM-02-3.3
  • IRM-02-5
  • IRM-02-9
  • IRM-02-12
  • IRM-02-15
  • IRM-02-24
Manufacturer: Mean Well
Type: Open Frame Power Supplies

IRM-02 Series Features:

Universal AC input / Full range

Protections: Short circuit/ Over Current/ Over voltage

Other features:

  • Cooling by free air convection
  • Isolation class II
  • Comply with EN55022 Class B without any additional components
  • Compact size
  • No load power consumption <0.075W
  • 3 years warranty
Wattage 2 2 2 2 2 2
Input Voltage 85-305VAC 85-305VAC 85-305VAC 85-305VAC 85-305VAC 85-305VAC
Output Current 600mA 400mA 222mA 167mA 133mA 83mA
Output Voltage 3.3 5 9 12 15 24
Output Voltage Options Single Single Single Single Single Single
Dimensions 33.7x 22.2x15 33.7x 22.2x15 33.7x 22.2x15 33.7x 22.2x15 33.7x 22.2x15 33.7x 22.2x15
Working Temperature -30-+85B0C
Safety Standards UL60950-1, TUV EN60950-1 Approved, optional IEC60601-1, EN60335-1, EN61558-1/-2-16
EMC Standards Compliance to EN55022 (CISPR22) Class B , EN61000-3-2-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN55024, heavy industry level(surge L-N : 1KV), criteria A.
